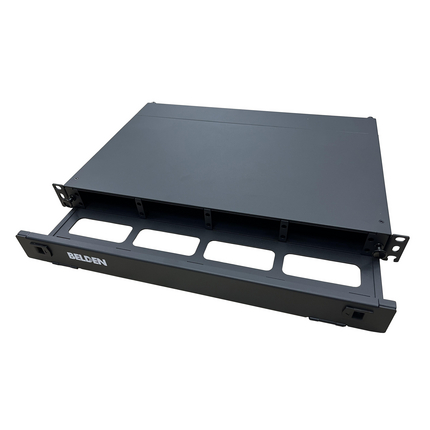

(4)FiberExpress High Density Patch Panel Housing with Full Front Sliding Drawer, 1U/19’’, Empty, Black
| Environmental Space: | Indoor |
| Suitable Applications: | FiberExpress Solutions, Backbone, Telecommunications Room, Main Distribution Room, Data Centers |
| Weight: | 4.8 kg |
| Height: | 44 mm |
| Width: | 482 mm |
| Depth: | 398 mm |
| Max Capacity: | Support up to 4 ACX series cassettes or adaptor frame (Up to 96 fibers per U) |
| Operating Temperature Range: | -10°C to +60°C |
| Storage Temperature Range: | -40°C to +70°C |
| Material |
|---|
| SPCC |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| Included Parts: | Cage nuts and Screw; Velcro Tapes; Port Identification Adhesive Label |
| Related Parts: | FiberExpress ACX High Density Cassettes (ACX-FCxxxx) ACX High Density Adaptor Strip (ACX-FFxxxx), Blank Plate (ACX-FF-BLANK) for unoccupied ports |
| Item # | Color |
|---|---|
| ACX-01RM-048P-U | Black |
| Packaging: | Individually packaged in a cardboard box |
| Notes: | Access : Full Front Sliding Drawer |
| Update and Revision: | Revision Number: 0.14 Revision Date: 04-13-2025 |
