A7JSJSA6028 - Ethernet/IP CAT6A 10 Gbps 10 Gigabit Ethernet double-ended cordset, Male straight transparent RJ45 to male straight transparent RJ45, shielded, TPE cable, 8 wires

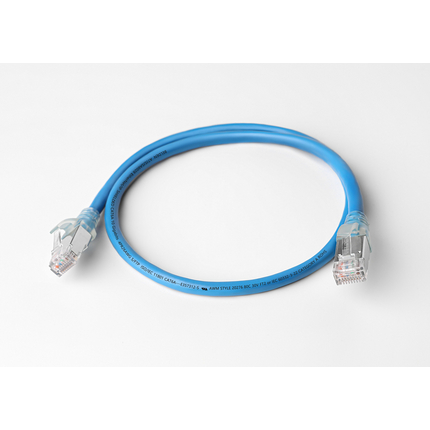

Ethernet/IP CAT6A 10 Gbps 10 Gigabit Ethernet double-ended cordset, Male straight transparent RJ45 to male straight transparent RJ45, shielded, TPE cable, 8 wires

Product Description

Product Family: EtherNet / IP Double-ended Cordset
Brand: Lumberg Automation
Connector Type: Cordset, double ended
Shielding: Shielded
Operating Voltage: 30 V
Data Transmission: Up to 10GBase-T, CAT6A
Suitable Applications: Support current and future Category 6a and 6 applications, such as: 10GBase-T (10 Gigabit Ethernet), 1000Base-T (Gigabit Ethernet), 100 Base-T, 10 Base-T, PoE ++ IEEE 802.3 bt type 3 and type 4 is applicable for max. 10m patch cord applications

Technical Data Side 1

Product Sub Family: RJ45
Connector Design: Straight
Number of Pins: 8
Coding: RJ45
Ambient Temperature (Operation)*: - 25°C to + 70°C
Protection Degree / IP Rating**: IP20
Housing Material: PC - Polycarbonate, UL94-V0 rated
Attachment Plating: Gold plating in contact area
Shielding Material: Copper Alloy

Cable Data

Cable Type: 26AWG CAT6A S/FTP TPE Patch Cable
Number of Wires: 8 wires
Cable- resistances: 14.5 Ohm/100m
ISO/IEC Compliance: ISO/IEC 11801
UL AWM Style Compliance: AWM 20276
Conductor material: Stranded Bare Copper
Cable Jacket Material: TPE
Cable Diameter D: 6.2 mm
Wire Insulation Material: Polyolefin
Insulated Wire Diameter: 1.08 mm
Foil shield: 2 Twisted insulated conductors with overall foil laminated AL-Mylar
Ambient Temperature (Fixed Installation): ‐20°C to +80°C
Flammability Class (Cable Jacket): FT2, IEC 60332‐1, IEC 60332-3A
Core Colors: 1: Blue& White, 2: Orange& White, 3: Green& White, 4: Brown& White

Technical Data Side 2

Product Sub Family, Side 2: RJ45
Connector Design, Side 2: Straight
Number of Pins, Side 2: 8
Coding, Side 2: RJ45
Ambient Temperature (Operation), Side 2*: - 25°C to + 70°C
Protection Degree / IP Rating, Side 2**: IP20
Housing Material, Side 2: PC - Polycarbonate, UL94-V0 rated
Attachment Plating, Side 2: Gold plating in contact area
Shielding Material, Side 2: Copper Alloy

Safety & Environmental Compliance

RoHS Compliant: Yes

Resistances

Oil Resistance: Yes

Notes

Protection Degree / IP Rating Note: only if mounted and locked in combination with Hirschmann / Lumberg Automation connector

History

Update and Revision: Revision Number: 0.21 Revision Date: 07-13-2023
Variants
Item #Cable LengthColor
A7JSJSA60280600300.3 mBlue
A7JSJSA60280600500.5 mBlue
A7JSJSA60280601001 mBlue
A7JSJSA60280101001 mBrown
A7JSJSA60280201001 mRed
A7JSJSA60280301001 mOrange
A7JSJSA60280401001 mYellow
A7JSJSA60280501001 mGreen
A7JSJSA60280701001 mPurple
A7JSJSA60280801001 mGray
A7JSJSA60280901001 mWhite
A7JSJSA60280001001 mBlack
A7JSJSA60280601501.5 mBlue
A7JSJSA60280602002 mBlue
A7JSJSA60280102002 mBrown
A7JSJSA60280202002 mRed
A7JSJSA60280302002 mOrange
A7JSJSA60280402002 mYellow
A7JSJSA60280502002 mGreen
A7JSJSA60280702002 mPurple
A7JSJSA60280802002 mGray
A7JSJSA60280902002 mWhite
A7JSJSA60280002002 mBlack
A7JSJSA60280603003 mBlue
A7JSJSA60280103003 mBrown
A7JSJSA60280203003 mRed
A7JSJSA60280303003 mOrange
A7JSJSA60280403003 mYellow
A7JSJSA60280503003 mGreen
A7JSJSA60280703003 mPurple
A7JSJSA60280803003 mGray
A7JSJSA60280903003 mWhite
A7JSJSA60280003003 mBlack
A7JSJSA60280605005 mBlue
A7JSJSA602806100010 mBlue
A7JSJSA602806150015 mBlue
A7JSJSA602806200020 mBlue
A7JSJSA602806250025 mBlue
A7JSJSA602806300030 mBlue
