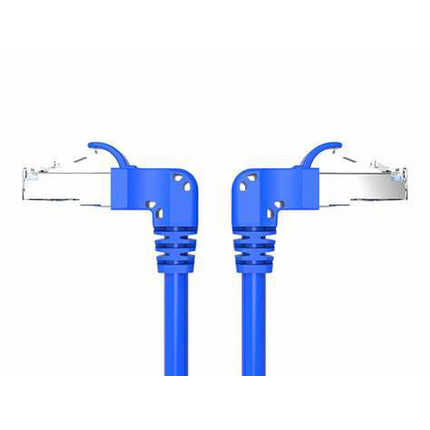

A7JEJEA6021 - Ethernet/IP CAT6A 10 Gbps 10 Gigabit Ethernet double-ended cordset, Male angled RJ45 to male angled RJ45, shielded, LSZH cable, 8 wires
/OIP-C (1).jpg)
Networking & Data Cable
(669)Industrial Ethernet Cable
(180)Enterprise Category Cable
(144)Industrial Protocol / Data Bus Cable
(343)Audio Cable
(527)Digital
(94)Analog
(136)Microphone
(43)Nurse Call
(8)Audio Over Internet Protocol (IP)
(7)Speaker & Control
(289)Video Cable
(270)75 Ohm SDI Coax
(100)Camera Cable
(53)CATV & Satelite
(52)CCTV & Security
(26)RGB Cable
(42)Video Over Internet Protocol (IP) Cable
(10)Coax & Triax Cable
(343)50 Ohm Transmission Cable
(64)75 Ohm SDI Coax
(95)CATV & Satelite Cable
(45)Triax Cable
(17)DS3 & DS4 Cable
(18)Conformable Cable
(11)Mil-Spec Cable
(1)CCTV & Security Cable
(26)Computer and Instrumentation Cable
(10)Multi-Media Cable
(33)Fiber Cable
(12368)Indoor Fiber Cable
(1419)Indoor/Outdoor Fiber Cable
(6450)Outdoor Fiber Cable
(4198)SMPTE Cable
(23)Tactical Fiber Cable
(315)Flexible Automation Cable
(3137)600V Control (AWM Style) Cable
(67)300V (PLTC) & 600V (TC-ER) Control Cable
(82)Flex Data Cable
(60)Vision Systems
(5)Flex VFD Cable
(13)Tray Cable
(810)Instrumentation Cable
(340)UL 300V PLTC/PLTC-ER Cable
(197)UL 600V TC/TC-ER Pairs/Triads
(114)UL Thermocouple
(30)CSA ACIC Cable
(30)Control / Power Cable
(483)VFD Cable
(243)Digital Electricity
(48)Hybrid Fiber-Copper Cable
(198)Rolling Stock Cable
(157)Safety, Sound, & Security Cable
(677)Audio, Sound, & Control Cable
(225)Access Control Cable
(77)Fire Alarm Cable
(80)Nurse Call
(2)Security & Alarm Cable
(252)Surveillance Cable
(38)Connectors & Outlets
(3151)Modular Couplers
(11)Modular Plugs
(27)Receptacles
(7)Coax Connectors
(87)12 GHz BNC Connectors
(15)6 GHz BNC Connectors
(17)ProSNS Connectors
(37)Double Bubble Connectors
(18)Multi Media Modules
(15)Copper Connector Accessories
(14)Fiber Connectors
(50)Mechanical Connectors
(20)Fiber Connector Accessories
(7)Adapters
(5)Fusion Splice-On Connectors
(18)Valve Connectors
(701)Type A
(534)Type A Field Attachables
(345)Type A Receptacles
(45)Type A Single-Ended Cordsets
(87)Type A Double-Ended Cordsets
(25)Type A Accessories
(26)Type A Adaptor
(6)Type B
(94)Type B Field Attachables
(43)Type B Receptacles
(5)Type B Single-Ended Cordsets
(26)Type B Double-Ended Cordsets
(19)Type B Adaptor
(1)Type C
(73)Workstation Outlets
(113)KeyConnect Outlets
(13)MDVO-Style Outlets
(12)MediaFlex System
(17)Multi Media Modules
(28)Workstation Consolidation
(35)Hybrid Termination Box
(8)Cross Connect Systems
(18)Category 6A Cross Connect Systems
(3)Category 6 Cross Connect Systems
(9)Category 5E Cross Connect Systems
(6)Power Connectors
(866)M12 Power
(370)Field Attachables
(8)Receptacles
(56)Single-Ended Cordsets
(190)Double-Ended Cordsets
(111)Splitter
(12)NR Series
(29)ST Series
(59)CA Series
(12)7/8", 1", 1 1/8" Series
(234)Field Attachables
(34)Receptacles
(84)Tees, Reducers & Adapters
(9)Single-Ended Cordsets
(69)Double-Ended Cordsets
(33)Accessories
(5)M23 Circular Connectors
(47)Mini Power
(58)Receptacles
(12)Tees, Reducers & Adapters
(10)Single-Ended Cordsets
(16)Double-Ended Cordsets
(20)G Series
(57)Sensor Actuator Connectors
(966)M12
(707)Field Attachables
(88)Receptacles
(140)Single-Ended Cordsets
(248)M12-M12 Cordsets
(165)M12-M8 Cordsets
(66)M8
(302)Field Attachables
(4)Receptacles
(50)Single-Ended Cordsets
(121)M8-M8 Cordsets
(63)M8-M12 Cordsets
(64)Accessories
(18)M8 and M12 Splitter
(3)Data Connectors
(218)Adapter and Splitter
(4)Double-Ended Cordsets
(105)Field Attachables
(16)Receptacles
(28)Single-Ended Cordsets
(65)SPE Connectors
(51)Assemblies & Cordsets
(1052)Fiber Patch Cords
(450)Double-Ended Cordsets
(76)Pigtails
(18)Pre-Terminated Assemblies
(466)AV Assemblies
(10)Patch Panels & Components
(762)Copper Patch Panels
(82)Preloaded Coupler Patch Panels
(2)Fiber Patch Panels
(76)Fiber Cassettes
(434)Modular (Empty) Panels
(6)Adapter Frames
(84)Adapter Strips
(13)Fiber Wall Mounts
(11)Patch Panel Accessories
(44)Broadcast Patch Panels
(1)Industrial Networking
(931)SPIDER Fast/Gigabit Switches
(42)Managed Switches
(264)BOBCAT
(115)BEETLE
(1)BXP
(8)BXS
(8)GECKO Switches
(6)LEMUR
(6)MSP – Modular Gigabit Switches
(21)MSP – The Modular Gigabit Switches (Layer 2/3)
(12)MSM - Configurable Media Modules for MSP Switches
(9)RS20/30/40 Switches
(57)RED25 Switches
(4)RSP/RSPS/RSPE Switches
(38)Rack Mount Switches
(102)DRAGON MACH4000
(16)GREYHOUND 1020/1030
(11)GREYHOUND 1040
(23)GREYHOUND 2000
(1)GREYHOUND 105/106
(13)GREYHOUND 103
(8)MACH100
(23)MACH1020/1030
(3)MACH1040
(4)IP65/IP67 Switches & Routers
(46)Embedded Ethernet
(4)Security & Firewalls
(26)Edge Device
(4)Wireless
(135)Cellular Routers
(10)Wireless LAN Devices
(20)BAT450-F WLAN Access Points
(2)BAT867 - Industrial Wireless Access Points
(3)BAT-C2
(5)Dragonfly Railway Wi-Fi 6 Radios
(8)OpenBAT-R / -F
(2)Wireless LAN Controller
(1)Antennas
(42)Accessories
(16)Industrial and IIoT-Routers
(11)Railway Routers
(17)Vehicle Routers
(18)Software
(90)Network Management
(29)Software Tools
(3)BHDO & BHDM
(4)Belden Horizon
(10)CloudRail
(4)Device Software
(35)Classic Switch Software
(15)HiOS – Hirschmann Operating System
(16)HiLCOS Software
(1)HiEOS - Hirschmann Entry Operating System
(1)OpEdge Software
(1)OWL Software
(1)macmon Network Access Control
(5)Accessories
(151)Transceivers
(58)Fast Ethernet SFP Transceiver
(14)Fast Ethernet Bi-Directional SFP Transceivers
(6)Gigabit Ethernet SFP Transceiver
(15)Gigabit Ethernet Bi-Directional SFP Transceiver
(12)2.5 Gigabit Ethernet SFP Transceiver
(5)10 Gigabit Ethernet XFP and SFP+ Transceivers
(5)DAC cable
(1)Auto-Configuration Adapter – ACA
(10)Connectors
(5)Mounting Accessories
(19)MIPP
(7)Miscellaneous Accessories
(10)Power Supplies and Cables
(18)Power over Ethernet (PoE) Injector
(4)Serial to Ethernet converters
(1)Terminal and Adapter Cables
(8)Wireless Accessories
(12)FiberINTERFACES
(29)IT Switch
(45)MTS8000 Core Switch
(24)MTS2900 Core Switch
(3)MTS2800 L3 Switch
(9)MTS2700 L3 PoE Switch
(7)MTS2600 L2 Switch
(2)Enterprise Ethernet
(34)SFP
(24)Stacking Cable
(5)Racks & Cabinets
(189)Server Cabinets
(3)Wall Mount Cabinets
(11)Seismic Cabinets
(12)Consolidation-MDU Enclosures
(2)Cabinet Individual Component Ordering Options
(20)Zone Enclosures
(3)Racks
(29)2 Post Rack
(12)Aluminum Knockdown
(1)Swing Rack
(1)Steel Knockdown
(4)Steel Welded
(2)Value Series Rack Kit
(4)4 Post Rack
(3)Seismic Rack
(3)Wall Mount Rack
(11)Power Distribution & Climate Monitoring
(1)Heat Containment
(8)Security & Access Control
(4)Cable Management
(32)Cable Runways
(32)Rack & Cabinets Accessories
(31)Shelves
(1)Cabinet Accessories
(19)Lacing Accessories
(6)Lacing/PDU Mounting Panels
(1)Bottom Seal Skirts
(2)Cabinet Caster Kit
(1)Frame & Rail Brush Kits
(3)Front to Rear Cable Manager
(1)Top Cable Trough
(1)Vertical Finger Managers
(2)Filler (Blanking) Panels
(3)Fans
(1)Grounding & Bonding
(3)Mounting Hardware
(1)PDU Accessories
(1)Zero U Vertical Patch Panel
(2)Termination Tools & Accessories
(107)Fiber Splicers & Tool Kits
(29)Label & Identification
(7)Fanout & Breakout Kits
(7)Connectivity Accessories
(2)Outlet & Hardware Accessories
(30)I/O Systems
(204)Ethernet I/O Modules
(38)IO-Link Masters and Devices
(41)Fieldbus I/O Modules
(10)Passive Distribution Boxes
(109)Safety I/O Modules
(4)Ethernet/IP CAT6A 10 Gbps 10 Gigabit Ethernet double-ended cordset, Male angled RJ45 to male angled RJ45, shielded, LSZH cable, 8 wires
| Brand: | Lumberg Automation |
| Connector Type: | RJ45 Male |
| Shielding: | Shielded |
| Rated Voltage: | 30V |
| Data Transmission: | 10GBase-T, Cat6A |
| Data Transmission Rate: | 10Gbit/s |
| Connector Design: | Angled |
| Number of Pins: | 8 |
| Coding: | RJ45 |
| Ambient Temperature (Operation)*: | - 25 °C ~+ 70 °C |
| Protection Degree / IP Rating**: | IP20 |
| Housing Material: | PC - Polycarbonate, UL 94V-0 rated |
| Attachment Plating: | Gold plating in contact area |
| Shielding Material: | Copper Alloy |
| Note: | **Only if mounted and locked in combination with Belden / Hirschmann / Lumberg Automation connector |
| Number of Wires: | 8 Cores |
| ISO/IEC Compliance: | ISO/IEC 11801 |
| UL AWM Style Compliance: | AWM 21100 |
| Conductor material: | Stranded Bare Copper |
| Cable Jacket Material: | LSZH |
| Cable Diameter D: | 6.2 mm |
| Wire Insulation Material: | Polyolefin |
| Insulated Wire Diameter: | 1.08 mm |
| Foil shield: | Shielding: Each pair with individual foil + overall braid shield |
| Ambient Temperature (Fixed Installation): | -20°C ~ + 80 °C |
| Flammability Class (Cable Jacket): | FT2, IEC 603321, IEC 60332-3A |
| Core Colors: | 1: Blue& White, 2: Orange& White, 3: Green& White, 4: Brown& White |
| Connector Design, Side 2: | Angled |
| Number of Pins, Side 2: | 8 |
| Coding, Side 2: | RJ45 |
| Ambient Temperature (Operation), Side 2*: | - 25 °C ~ + 70 °C |
| Protection Degree / IP Rating, Side 2**: | IP20 |
| Housing Material, Side 2: | PC - Polycarbonate, UL 94V-0 rated |
| Attachment Plating, Side 2: | Gold plating in contact area |
| Shielding Material, Side 2: | Copper Alloy |
| RoHS Compliant: | yes |
| Oil Resistance: | Yes |
| Protection Degree / IP Rating Note: | ** only if mounted and locked in combination with Hirschmann / Lumberg Automation connector. |
| Update and Revision: | Revision Number: 0.4 Revision Date: 04-29-2025 |
| Item # | Cable Length | Color |
|---|---|---|
| A7JEJEA6021060030 | 0.3 m | Blue |
| A7JEJEA6021060050 | 0.5 m | Blue |
| A7JEJEA6021000100 | 1 m | Black |
| A7JEJEA6021010100 | 1 m | Brown |
| A7JEJEA6021020100 | 1 m | Red |
| A7JEJEA6021030100 | 1 m | Orange |
| A7JEJEA6021040100 | 1 m | Yellow |
| A7JEJEA6021050100 | 1 m | Green |
| A7JEJEA6021060100 | 1 m | Blue |
| A7JEJEA6021070100 | 1 m | Purple |
| A7JEJEA6021080100 | 1 m | Gray |
| A7JEJEA6021090100 | 1 m | White |
| A7JEJEA6021060150 | 1.5 m | Blue |
| A7JEJEA6021000200 | 2 m | Black |
| A7JEJEA6021010200 | 2 m | Brown |
| A7JEJEA6021020200 | 2 m | Red |
| A7JEJEA6021030200 | 2 m | Orange |
| A7JEJEA6021040200 | 2 m | Yellow |
| A7JEJEA6021050200 | 2 m | Green |
| A7JEJEA6021060200 | 2 m | Blue |
| A7JEJEA6021070200 | 2 m | Purple |
| A7JEJEA6021080200 | 2 m | Gray |
| A7JEJEA6021090200 | 2 m | White |
| A7JEJEA6021000300 | 3 m | Black |
| A7JEJEA6021010300 | 3 m | Brown |
| A7JEJEA6021020300 | 3 m | Red |
| A7JEJEA6021030300 | 3 m | Orange |
| A7JEJEA6021040300 | 3 m | Yellow |
| A7JEJEA6021050300 | 3 m | Green |
| A7JEJEA6021060300 | 3 m | Blue |
| A7JEJEA6021070300 | 3 m | Purple |
| A7JEJEA6021080300 | 3 m | Gray |
| A7JEJEA6021090300 | 3 m | White |
| A7JEJEA6021060500 | 5 m | Blue |
| A7JEJEA6021061000 | 10 m | Blue |
| A7JEJEA6021061500 | 15 m | Blue |
| A7JEJEA6021062000 | 20 m | Blue |
| A7JEJEA6021062500 | 25 m | Blue |
| A7JEJEA6021063000 | 30 m | Blue |
| A7JEJEA6021066000 | 60 m | Blue |
