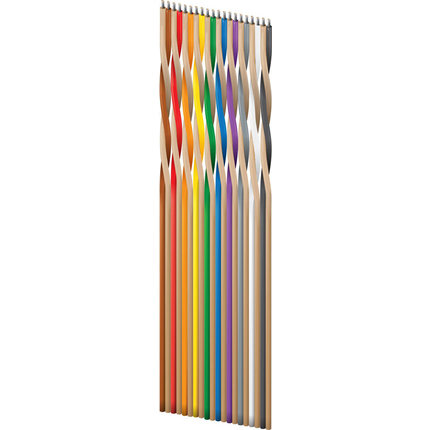

(4)Flat Vari-Twist Cable .050" Pitch, 9V280XX Series, 14 Conductors, 28 AWG (7x36) Tinned Copper, PVC Insulated Conductors on PVC Substrate
| Suitable Applications: | Internal interconnection, internal wiring of electronic equipment, reduced crosstalk in balanced mode, can be mass-terminatable in flat sections with standard IDC connectors |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 28 | 7x36 | TC - Tinned Copper | 7 |
| Conductor Count: | 14 |
| Material | Nominal Wall Thickness |
|---|---|
| PVC - Polyvinyl Chloride | 0.010 in |
| Number | Color |
|---|---|
| 1 | Brown/Tan |
| 2 | Red/Tan |
| 3 | Orange/Tan |
| 4 | Yellow/Tan |
| 5 | Green/Tan |
| 6 | Blue/Tan |
| 7 | Purple/Tan |
| Conductor Spacing Center-Center Flat Section: | .050 +/- .005 in |
| Conductor Spacing Center-Center Outside: | .650 +/- .015 in |
| Substrate Thickness and Material: | .010 in, Clear PVC |
| Twisted Pair Spacing Center-Center: | 0.100 in |
| Overall Flat Section Length: | 2.0 +.50 - 0 in |
| Overall Twisted Length: | 18 in |
| OuterJacket1, Nominal Width: | 0.726 in |
| OuterJacket1, Nom Thick Flat Section: | 0.042 in |
| OuterJacket1, Nom Thick Twisted Section: | 0.084 in |
| Nominal Conductor DCR |
|---|
| 68.2 Ohm/1000ft |
| Element | Nom. Capacitance Conductor to Conductor |
|---|---|
| @ 1 kHz | 20 pF/ft |
| @ 1 MHz | 16 pF/ft |
| Min Insulation Resistance: |
| Element | Nominal Inductance |
|---|---|
| @ 1 MHz | 0.24 µH/ft |
| Nominal Balanced Characteristic Impedance [] | Nominal Characteristic Impedance | Nominal Characteristic Impedance Description | Nominal Unbalanced Characteristic Impedance |
|---|---|---|---|
| 115 Ohm | 115 Ohm | Balanced | 100 Ohm |
| 100 Ohm | Unbalanced |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 10 MHz | 3.5 dB/100ft |
| 20 MHz | 5.5 dB/100ft |
| 30 MHz | 7.2 dB/100ft |
| 40 MHz | 8.8 dB/100ft |
| 50 MHz | 10.2 dB/100ft |
| 60 MHz | 12 dB/100ft |
| 70 MHz | 13 dB/100ft |
| 80 MHz | 14.2 dB/100ft |
| 90 MHz | 15 dB/100ft |
| 100 MHz | 16 dB/100ft |
| Table Notes: | 18" of twisted pairs and 2" of flat section. The transition area is included in the twisted length to assure a full 2 inches of flat termination area. |
| Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|
| 1.6 ns/ft | 64% |
| Description | Start Frequency [MHz] | Stop Frequency [MHz] | dB Suppression |
|---|---|---|---|
| 10 ft. sample length | 10 MHz | 100 MHz | 35 dB |
| Element | Typical Unbalanced NEXT % | Typical Unbalanced FEXT % | Typical Cross Talk Pulse Rise Time (ns) |
|---|---|---|---|
| 10 ft. sample length all grounds connected together. | 5.8 | 5.2 | 3 ns |
| 10 ft. sample length all grounds connected together. | 4 | 3.2 | 5 ns |
| 10 ft. sample length all grounds connected together. | 2.5 | 2.8 | 7 ns |
| Max. Recommended Current [A] |
|---|
| 1 Amp per Conductor at 20ºC |
| Dielectric Withstand Voltage | UL Voltage Rating |
|---|---|
| 2000 V | 300 V |
| Operating Temperature Range: | -20°C to +105°C |
| Bulk Cable Weight: | 29 lbs/1000ft |
| Min. Bend Radius/Minor Axis: | 1.25 in |
| UL AWM Style Compliance: | AWM 2693, AWM 2697 |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | Yes |
| EU CE Mark: | Yes |
| CA Prop 65 (CJ for Wire and Cable): | Yes |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Indoor: | Yes |
| UL Flammability: | VW-1 |
| UL voltage rating: | 300 V |
| Plenum (Y/N): | No |
| Item # | Color | Length | UPC |
|---|---|---|---|
| 9V28014 000H100 | None | 100 ft | 612825222125 |
| Footnote: | E - MAY CONTAIN MORE THAN 1 PIECE. MINIMUM LENGTH OF ANY ONE PIECE IS 25'. |
| Update and Revision: | Revision Number: 0.332 Revision Date: 02-03-2025 |
