9L26016 - Flat Gray Ribbon Cable .050" Pitch, 9L260XX Series, #26-16c, PVC Ins

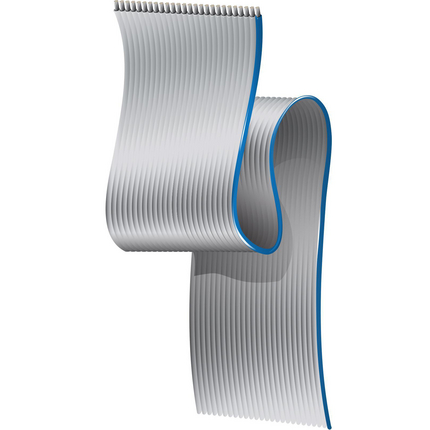

Flat Gray Ribbon Cable .050" Pitch, 9L260XX Series, 16 Conductor, 26 AWG (7x34) Tinned Copper, PVC Insulation

Product Overview

Suitable Applications: Internal interconnection, internal wiring of electronic equipment, reliable mass-termination to standard IDC connectors

Physical Characteristics (Overall)

267x34TC - Tinned Copper
Conductor Count: 16
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.010 in
Color Chart
Table Notes: First Conductor has Blue Stripe

Construction and Dimensions

Conductor Spacing Center-Center: .050 +/- .002 in
Conductor Spacing Center-Center Outside: .750 +/- .008 in
OuterJacket1, Nominal Width: .800 +/- .008 in
OuterJacket1, Nom Thick Flat Section: 0.039 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
43 Ohm/1000ft
ElementNom. Capacitance Conductor to Conductor
@ 1 kHz (GSG)23 pF/ft
@ 1 MHz (GS)11 pF/ft
@ 1 MHz (GSG)18 pF/ft
Min Insulation Resistance: 10,000 MOhm
ElementNominal Inductance
@ 1 MHz (GS)0.23 µH/ft
@ 1 MHz (GSG)0.15 µH/ft
Nominal Characteristic ImpedanceNominal Characteristic Impedance Description
135 Ohm(GS)
90 Ohm(GSG)
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
10 MHz3.9 dB/100ft
20 MHz6.4 dB/100ft
30 MHz8.7 dB/100ft
40 MHz13 dB/100ft
50 MHz16.9 dB/100ft
60 MHz20.1 dB/100ft
70 MHz22.5 dB/100ft
80 MHz23.9 dB/100ft
90 MHz25.1 dB/100ft
100 MHz26.4 dB/100ft
Table Notes: GS=Ground-Signal Mode; GSG=Ground-Signal-Ground Mode
Nominal DelayNominal Velocity of Propagation (VP) [%]
1.48 ns/ft68%
Unbalanced Crosstalk
ElementTypical Unbalanced NEXT %Typical Unbalanced FEXT %Typical Cross Talk Pulse Rise Time (ns)
10 ft. sample length5.26.23 ns
10 ft. sample length4.255 ns
10 ft. sample length3.33.87 ns
Max. Recommended Current [A]
1.5 Amps per Conductor at 20ºC
Dielectric Withstand VoltageUL Voltage Rating
2000 V300 V

Temperature Range

Operating Temperature Range: -40°C to +105°C

Mechanical Characteristics

Bulk Cable Weight: 25 lbs/1000ft
Min Bend Radius (Overall Cable): 2.08
Min. Bend Radius During Installation: 2.07 in


UL AWM Style Compliance: AWM 2651
CSA AWM Compliance: AWM 1/11, A

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (RoHS 2): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU (RoHS 2 amendment): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
CA Prop 65 (CJ for Wire and Cable): Yes
MII Order #39 (China RoHS): Yes


Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: VW-1
CSA Flammability: FT1
UL voltage rating: 300 V


Plenum (Y/N): No

Related Part Numbers

Item #ColorLengthUPC
9L26016 008H100Gray100 ft612825221531


Update and Revision: Revision Number: 0.393 Revision Date: 04-08-2022
Date: 2005-07-01
No accessories are available for this product
