9877 - Audio, Control & Instrument, #20-12pr, PO, Indiv. Foil, PVC Jkt, CM

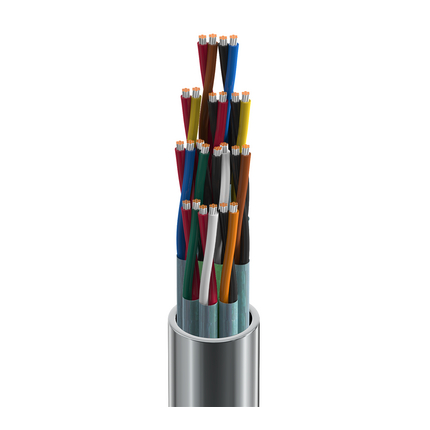

Audio, Control & Instrument Cable, 20 AWG stranded (7x28) tinned copper conductors, polypropylene insulation, 12 twisted pairs, individually shielded with Beldfoil® (100% coverage), 22 AWG stranded tinned copper drain wire, overall PVC jacket.

Product Overview

Suitable Applications: Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Computer Communication; Panel Wiring

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Pair(s)12207x28TC - Tinned Copper
Insulation
ElementMaterialThickness [in]Color
Pair(s)PP - Polypropylene0.015Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green, Red & Blue, Red & Yellow, Red & Brown
Inner Shield Material
ElementTypeMaterialCoverageDrain Type
Pair(s)TapeAlum / Poly100 %19x34 - TC
Outer Jacket Material
MaterialNominal Wall ThicknessNominal Diameter
PVC - Polyvinyl Chloride0.050 in0.617 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-GrndCharacteristic ImpedenceNom. Velocity of Prop.Max. Current
Pair(s)10.5 Ohm/1000ft30 pF/ft55 pF/ft50 Ohm66 %2.0 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
300 V (CM), 30 V (UL AWM 2919)

Mechanical Characteristics

Temperature
UL RatingOperating
80°C (UL AWM 2919)-20°C to +80°C
Bend Radius
Stationary Min.
6.25 in
Max Recommended Pulling Tension: 440 lbs

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65 (CJ for Wire and Cable)
Flammability / Fire Resistance: UL1685 UL Loading, IEC 60332-1-2
NEC / UL Compliance: 800, CM
AWM Compliance: 2919
CEC / C(UL) Compliance: CM
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS 2

History

Update and Revision: Revision Number: 0.262 Revision Date: 05-29-2020
Date: 2004-01-01
No accessories are available for this product
