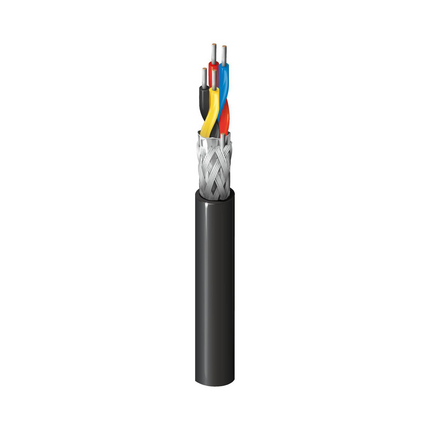

(10)Computer POS Cable, 22 AWG solid tinned copper conductors, solid PO insulation, twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (55% coverage) + polyester tape, 22 AWG solid tinned copper drain wire, PVC jacket, CM rated
| Suitable Applications: | point of sale; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …) |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | Solid | TC - Tinned Copper | 2 |
| Total Number of Conductors: | 4 |
| Total Number of Pairs: | 2 |
| Material | Nominal Wall Thickness |
|---|---|
| PE - Polyethylene | 0.019 in |
| Number |
|---|
| Red & Blue |
| Black & Yellow |
| Type | Layer | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|---|
| Tape | 1 | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 22 |
| Braid | 2 | Tinned Copper (TC) | 58% |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| PVC - Polyvinyl Chloride | 0.270 in | 0.033 in |
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 16.5 Ohm/1000ft | 4.2 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 15.5 pF/ft | 27.5 pF/ft |
| Nominal Characteristic Impedance |
|---|
| 100 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 0.3 | 0.4 dB/100ft |
| 0.6 | 0.53 dB/100ft |
| 1 | 0.65 dB/100ft |
| 1.5 | 0.78 dB/100ft |
| Max. Recommended Current [A] |
|---|
| 2.3 Amps per Conductor at 25ºC |
| Voltage Rating [V] |
|---|
| 300V |
| UL Temp Rating: | 60°C |
| Operating Temp Range: | -20°C to 60°C |
| Bulk Cable Weight: | 37 lbs/1000ft |
| Max Recommended Pulling Tension: | 63.8 lbs |
| Min Bend Radius/Minor Axis: | 2.75 in |
| NEC Articles: | Article 800 |
| NEC/(UL) Specification: | CM |
| CEC/C(UL) Specification: | CM |
| UL AWM Style: | 2582 |
| CPR Euroclass: | Fca |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU: | Yes |
| EU Directive Compliance: | Yes |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2004-01-01 |
| Suitability - Indoor: | Yes |
| C(UL) Flammability: | FT1 |
| UL Flammability: | UL 1685 UL loading |
| Plenum (Y/N): | N |
| Plenum Number: | 89855 |
| Item # | Color | UPC |
|---|---|---|
| 9855 0101000 | Black | 612825259657 |
| 9855 01010000 | Black | 612825259664 |
| 9855 010500 | Black | 612825259671 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Y - FINAL PUT-UP LENGTH MAY VAR -10% TO +20% FROM LENGTH SHOWN. MAY CONTAIN 2 PIECES. MINIMUM LENGTH OF ANY ONE PIECE IS 1500'. |
| Update and Revision: | Revision Number: 0.122 Revision Date: 09-30-2020 |
