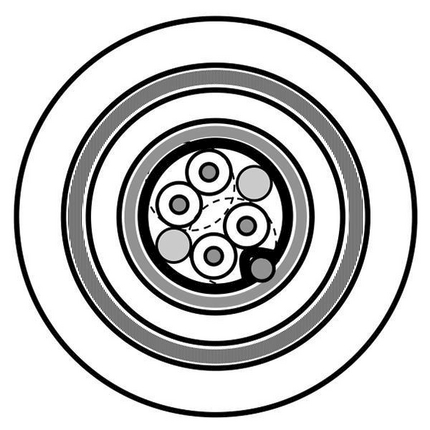

(4)RS-485, 2 Pair 24AWG Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, LSZH / FRNC jacket , 300V, SWA, CPR Eca
| Suitable Applications: | RS-485, POS; Computer communications; Low Voltage Analog Signals (4-20ma, 0-10v, ...); Low Voltage Digital Control (24v, …); Line Level Audio; Panel Wiring; serial communication (RS-485 standard) comprising of PLCs, VFDs, HMIs, motors, RTU, SCADA, etc. within noisy environments over long distance, etc. |
| Element | No. of Elements | Size | Stranding | Material |
|---|---|---|---|---|
| Pair(s) | 2 | 24 AWG | 7x32 | TC - Tinned Copper |
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
|---|---|---|---|---|
| Pair(s) | PE - Polyethylene | 0.56 mm (0.022 in) | 1.73 mm (0.0681 in) | White/Blue & Blue/White, White/Orange & Orange/White |
| Shield Type | Material | Coverage | Drainwire Type |
|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | 100% | 24 AWG (7x32) TC |
| Braid | Tinned Copper (TC) | 90% |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 1.1 mm (0.043 in) | 8.65 mm (0.341 in) |
| Armor Type & Material | Armor Thickness | Coverage |
|---|---|---|
| SWA - Steel Wire Armor | 0.9 mm (0.035 in) | Min. 95% |
| Material | Nom. Thickness | Nom. Diameter |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 1.35 mm (0.0531 in) | 13.1 mm (0.516 in) |
| Overall Cable Diameter (Nominal): | 13.1 mm (0.516 in) |
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Characteristic Impedence | Nom. Velocity of Prop. | Max. Current |
|---|---|---|---|---|---|---|
| Pair(s) | 78.7 Ohm/km (24.0 Ohm/1000ft) | 42 pF/m (13 pF/ft) | 75.5 pF/m | 120 Ohm | 66% | 2.1 Amps per Conductor |
| Nom. Outer Shield DCR: | 7.2 Ohm/km (2.2 Ohm/1000ft) |
| Element | Frequency [MHz] | Nom. Insertion Loss (Attenuation) |
|---|---|---|
| Pair(s) | 1 | 1.97 dB/100m |
| Voltage Rating |
|---|
| 300 V |
| Operating | Installation | Storage |
|---|---|---|
| -45°C To +80°C | -15°C To +80°C | -45°C To +80°C |
| Stationary Min. | Installation Min. |
|---|---|
| 130 mm (5.1 in) | 196 mm (7.72 in) |
| Max. Pull Tension: | 500 N (110 lbf) |
| Bulk Cable Weight: | 322 kg/km (216 lbs/1000ft) |
| Environmental Suitability: | Indoor |
| Flammability / Reaction to Fire: | IEC 60332-1-2, IEC 60332-3-24 |
| CPR Compliance: | CPR Euroclass: Eca |
| ISO/IEC Compliance: | IEC 61034-2 - Smoke Density Min Transmittance = 60% |
| CENELEC Compliance: | EN 50290-2-20 |
| European Halogen Free Standards: | IEC 62821-1 Halogen Free Compliance = Yes, IEC 60754-1 - Halogen Amount = Zero, IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity = 2.5 µS/mm, IEC 60754-2 - Halogen Acid Gas Amount - Min. pH = 4.3 |
| European Directive Compliance: | EU CE Mark |
| UK Regulation Compliance: | UKCA Mark |
| Other Standard Compliance(s): | DMX-512 |
| Update and Revision: | Revision Number: 0.256 Revision Date: 04-07-2025 |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| 9842LS.00152 | Black | Reel | 152 m | 8719605023094 |
| 9842LS.00500 | Black | Reel | 500 m | 8719605023124 |
| 9842LS.01500 | Black | Reel | 500 m | 8719605023162 |
| 9842LS.001000 | Black | Reel | 1,000 m | 8719605023056 |
| 9842LS.011000 | Black | Reel | 1,000 m | 8719605023131 |
| 9842LS.001200 | Black | Reel | 1,200 m | 8719605023063 |
| 9842LS.001280 | Black | Reel | 1,280 m | 8719605023070 |
| 9842LS.001500 | Black | Reel | 1,500 m | 8719605023087 |
| 9842LS.011500 | Black | Reel | 1,500 m | 8719605023148 |
| 9842LS.002000 | Black | Reel | 2,000 m | 8719605023100 |
| 9842LS.012000 | Black | Reel | 2,000 m | 8719605023155 |
| 9842LS.002600 | Black | Reel | 2,600 m | 8719605023117 |
| 9842LS.02500 | Green | Reel | 500 m | 8719605023186 |
| 9842LS.03500 | Green | Reel | 500 m | 8719605023193 |
| 9842LS.021000 | Green | Reel | 1,000 m | 8719605023179 |
