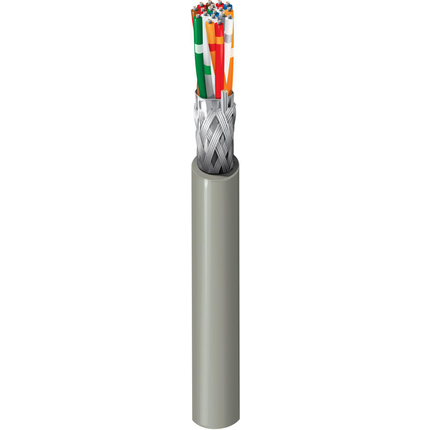

9834 - RS232/422 Low Cap, #24-9pr, PE, O/A Foil+Braid, PVC Jkt, CM, 100Ω


Computer EIA RS-232/422 Cable, 9-Pair, 24 AWG stranded (7x32) tinned copper conductors, polyethylene insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Product Overview

Suitable Applications: RS-232 extended distance applications; RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Pair(s)9247x32TC - Tinned Copper
Insulation
ElementMaterialThickness [in]Color
Pair(s)PE - Polyethylene0.0155White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White Stripe, White/Green Stripe & Green/White Stripe, White/Brown Stripe & Brown/White Stripe, White/Gray Stripe & Gray/White Stripe, Red/Blue Stripe & Blue/Red Stripe, Red/Orange Stripe & Orange/Red Stripe, Red/Green Stripe & Green/Red Stripe, Red/Brown Stripe & Brown/Red Stripe
Outer Shield Material
TypeMaterialCoverageDrainwire Type
Tape + BraidAlum / Poly + TC - Tinned Copper100% + 65%24 AWG (7x32) TC
Outer Jacket Material
MaterialNominal Wall ThicknessNominal Diameter
PVC - Polyvinyl Chloride0.035 in0.419 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Characteristic ImpedenceNom. Velocity of Prop.Max. Current
Pairs24 Ohm/1000ft15.5 pF/ft27.5 pF/ft100 Ohm66%1.68 Amps per conductor at 25°C
Voltage
UL Voltage Rating
300 V (CM), 30 V (UL AWM 2919)

Mechanical Characteristics

Temperature
UL RatingOperating
80°C (UL AWM 2919)-30°C to +80°C
Bend Radius
Stationary Min.
4.25 in

Standards and Compliance

Environmental Suitability: Indoor
Sustainability: CA Prop 65 (CJ for Wire and Cable)
Flammability / Fire Resistance: UL1685 UL Loading
NEC / UL Compliance: Article 800, CM
AWM Compliance: 2919
CEC / C(UL) Compliance: CM
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS 2

History

Update and Revision: Revision Number: 0.264 Revision Date: 06-01-2020
Date: 2004-01-01
