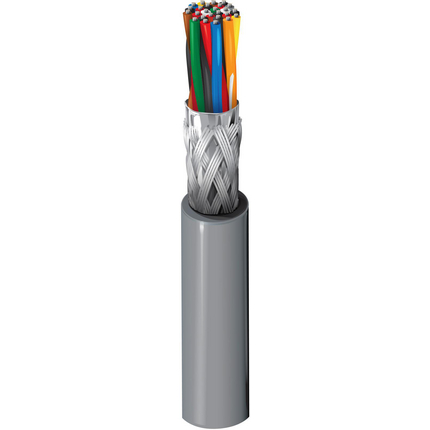

9813 - RS232/422 Low Cap, #28-13pr, PP, O/A Foil+Braid, PVC Jkt, CL2, 100Ω


Computer EIA RS-232/422 Cable, 13-Pair, 28 AWG stranded (7x36) tinned copper conductors, polypropylene insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (90% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.

Product Overview

Suitable Applications: RS-232 extended distance applications; RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Pairs
Pair(s)287x36TC - Tinned Copper13
Conductor Count: 26
Insulation
ElementMaterialNominal Wall Thickness
Pair(s)PP - Polypropylene0.009 in
18
Color Chart
NumberColor
1Black & Red
2Black & White
3Black & Green
4Black & Blue
5Black & Yellow
6Black & Brown
7Black & Orange
8Red & White
9Red & Green
10Red & Blue
11Red & Yellow
12Red & Brown
13Red & Orange
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
Tape1Alum / PolyBeldfoil®100 %TC - Tinned Copper287x36
Braid2TC - Tinned Copper90 %
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.336 in0.035 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
64.9 Ohm/1000ft2.2 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
15.5 pF/ft27.5 pF/ft
Inductance
Nominal Inductance
0.19 µH/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
66 ns/100m66 %
Current
Max. Recommended Current [A]
0.65 Amps per conductor @ 25°C ambient
Voltage
UL DescriptionUL Voltage Rating
UL AWM 296030 V

Temperature Range

UL Temp Rating: 60°C (UL AWM 2960)
Storage Temp Range: -35°C to +60 °C
Operating Temp Range: -30°C to +60°C

Mechanical Characteristics

Bulk Cable Weight: 62 lbs/1000ft
Max Recommended Pulling Tension: 116 lbs
Min Bend Radius/Minor Axis: 3.5 in

Standards

NEC/(UL) Specification: CL2
UL AWM Style: 2960
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 30 V

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
9813 060100ChromeReel100 ft612825258995
9813 060500ChromeReel500 ft612825259015
9813 0601000ChromeReel1,000 ft612825259008
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.259 Revision Date: 05-27-2020
Date: 2004-01-01
