9809 - RS232/422 Low Cap, #28-9pr, PP, O/A Foil+Braid, PVC Jkt, CL2, 100Ω

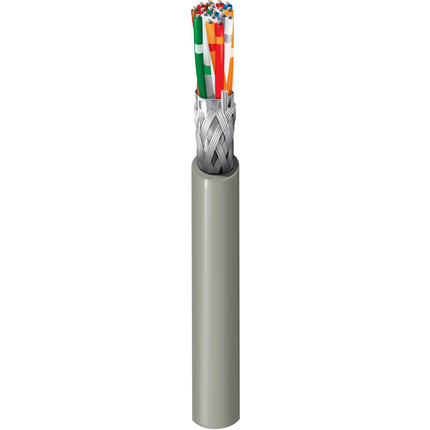

Computer EIA RS-232/422 Cable, 9-Pair, 28 AWG stranded (7x36) tinned copper conductors, polypropylene insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (90% coverage), 28 AWG stranded tinned copper drain wire, PVC jacket.

Product Overview

Suitable Applications: RS-232 extended distance applications; RS-422 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Pair(s)9287x36TC - Tinned Copper
Insulation
ElementMaterialThickness [in]Color Code
Pair(s)PP - Polypropylene0.009Black & Red, Black & White, Black & Green, Black & Blue, Black & Yellow, Black & Brown, Black & Orange, Red & White, Red & Green
Outer Shield Material
TypeMaterialCoverageDrainwire Type
Tape + BraidAlum / Poly + Tinned Copper (TC)100% + 90%28 AWG (7x36) TC
Outer Jacket Material
MaterialThicknessDiameter
PVC - Polyvinyl Chloride0.035 in0.290 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Characteristic ImpedenceNom. Velocity of Prop.Max. Current
Pair(s)64.9 Ohm/1000ft15.5 pF/ft27.5 pF/ft100 Ohm66%0.65 Amps per conductor at 25°C
Voltage
UL Voltage Rating
30 V (UL AWM 2960)

Mechanical Characteristics

Temperature
UL RatingOperating
60°C (UL AWM 2960)-20°C to +60°C
Bend Radius
Stationary Min.
3 in
Max. Pull Tension: 85 lbs
Bulk Cable Weight: 49 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Fire Resistance: UL1685 UL Loading
NEC / UL Compliance: CL2
AWM Compliance: 2960
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.269 Revision Date: 06-05-2020
Date: 2004-01-01
