9773MN - SpaceMaker™, 3 Pr #18 Str TC, PO Ins, IS/OS, PVC Jkt, AWM 2937

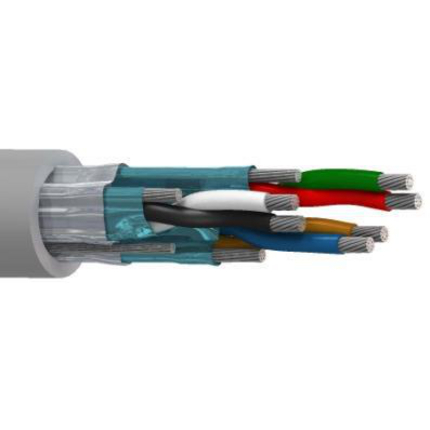

SpaceMaker™, 3 Pair 18AWG (41x34) Tinned Copper, PO Insulation, Individual & Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Pair(s)318 AWG41x34TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Pair(s)PP - Polypropylene0.010 in (0.25 mm)0.067 in (1.7 mm)Black & White, Red & Green, Brown & Blue
Inner Shield
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%20 AWG (19x32) TC
Outer Shield
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%18 AWG (19x30) TC
Outer Jacket
MaterialNom. ThicknessNom. Diameter
PVC - Polyvinyl Chloride0.016 in (0.41 mm)0.310 in
Overall Cable Diameter (Nominal): 0.310 in

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Nom. Characteristic ImpedenceMax. Current
7.06 Ohm/1000ft43.4 pF/ft (142 pF/m)81.6 pF/ft (268 pF/m)39 Ohm9.8 Amps per Conductor at 30ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
80°C-20°C to +80°C
Bend Radius
Stationary Min.Installation Min.
1.240 in (31.50 mm)1.240 in
Max. Pull Tension: 162.7 lbs (73.80 kg)
Bulk Cable Weight: 65 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Reaction to Fire: FT2
AWM Compliance: AWM 2937
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision: Revision Number: 0.220 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
9773MN 006100Blue, LightReel100 ft612825386803
9773MN 0061000Blue, LightReel1,000 ft612825386810
9773MN 008100GrayReel100 ft612825386827
9773MN 0081000GrayReel1,000 ft612825386834
9773MN 004100YellowReel100 ft612825386780
9773MN 0041000YellowReel1,000 ft612825386797
