973107Z - RS485, 2 Pr #22 Str TC, PE Ins, OS+TC Brd, LSZH-TS Jkt, Brnz Brd Armor, LSZH-TS Jkt, CMG

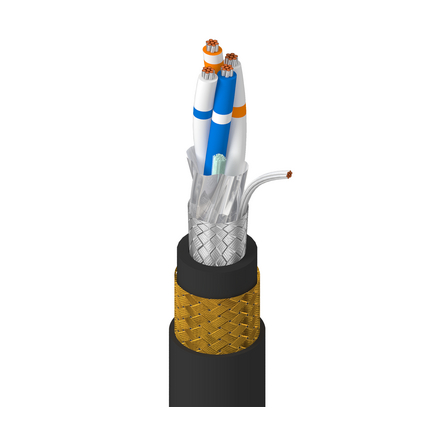

RS-485, 2 Pair 22AWG (7x30) Tinned Copper, PE Insulation, Overall Beldfoil®+Tinned Copper Braid(65%) Shield, LSZH-TS Inner Jacket, Bronze Braid Armor, LSZH-TS Outer Jacket, CMG, PLTC

Suitable Applications: shipboard, harsh environment, IIoT, factory or process automation, video, audio, data communication, etc.
Conductor
ElementNumber of ElementAWGStrandingMaterial
Pair(s)2227x30TC - Tinned Copper
Insulation
ElementMaterialThickness [in.]Color CodeNotes
Pair(s)PE - Polyethylene (Foam)0.025White/Blue Stripe & Blue/White Stripe, White/Orange Stripe & Orange/White StripeHDPE
Outer Shield Material
Shield TypeMaterialCoverageDrainwire Type
Tape + BraidBi-Laminate (Alum+Poly) + Tinned Copper (TC)100% + 65%22 AWG (7x30) TC
Inner Jacket Material
Material
LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset)
Armor
Armor Type & Material
BBA - Bronze Braid Armor
Outer Jacket Material
MaterialThicknessNom. Diameter
LSZH - Low Smoke Zero Halogen (Flame Retardant, Thermoset)0.050 in0.599 in
Cable Diameter (Nominal): 0.599 in
Electricals
ElementCharacteristic ImpedenceNom. Velocity of Prop.
Pair(s)120 Ohm78%
High Frequency (Nominal/Typical)
Element
Pair(s)
Voltage
UL Voltage Rating
300 V (CMG, PLTC)
NEC / UL Compliance: Article 725, Article 800, CMG, PLTC
CEC / C(UL) Compliance: CMG
Update and Revision: Revision Number: 0.103 Revision Date: 09-30-2020
No accessories are available for this product
