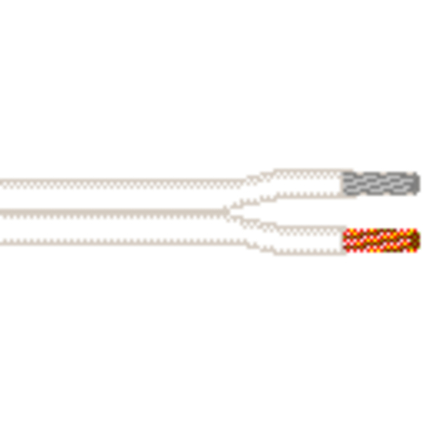

9717 - Speaker Cable, 2 Conductor 14 AWG BC, Unshielded, CM


2 Conductor 14 AWG stranded (19x27) ETP high-conductivity copper conductors, PVC insulation, parallel: (1) tinned, (1) bare.

Product Overview

Suitable Applications: Speaker Cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Conductors
1419x27High Conductivity Tinned Copper0.071 in1
1419x27BC - Bare Copper0.071 in1
Conductor Count: 2
Insulation
MaterialNominal Wall Thickness
PVC - Polyvinyl Chloride0.035 in
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.146 x 0.292 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
2.7 Ohm/1000ft
Inductance
Nominal Inductance
0.2 µH/ft
Current
Max. Recommended Current [A]
9.5 Amps per conductor @ 25°C
Voltage
Non-UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 60°C
Operating Temp Range: -20°C To +60°C

Mechanical Characteristics

Bulk Cable Weight: 40 lbs/1000ft
Max Recommended Pulling Tension: 125 lbs
Min Bend Radius/Minor Axis: 3 in

Standards

CPR Euroclass: Eca

Applicable Environmental and Other Programs

Environmental Space: Indoor (Not Riser or Plenum)
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

ISO/IEC Flammability: IEC 60332-1-2

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
9717 3681000Clear, TransparentReel1,000 ft612825257332
9717 368U1000Clear, TransparentUnReel1,000 ft612825257356
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.262 Revision Date: 04-28-2020
Date: 2004-01-01
