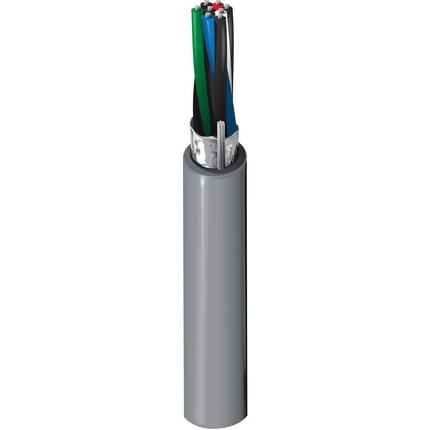

9681 - RS232/422 Low Cap, #24-4pr, PO, O/A Foil, PVC Jkt, CM, 100Ω


Computer EIA RS-232/422 Cable, 24 AWG stranded (7x32) tinned copper conductors, polyethylene insulation, twisted pairs, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.

Product Overview

Suitable Applications: rs-232 extended distance applications; rs-423 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
247x32TC - Tinned Copper4
Conductor Count: 8
Insulation
MaterialNominal Wall Thickness
PE - Polyethylene0.016 in
Color Chart
NumberColor
1White/Blue & Blue/White
2White/Orange & Orange/White
3White/Green & Green/White
4White/Brown & Brown/White
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper247x32
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.307 in0.035 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
24 Ohm/1000ft14.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to ShieldNom.Mutual Capacitance
15.5 pF/ft27.5 pF/ft15.7 pF/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
Delay
Max. Delay SkewNominal Velocity of Propagation (VP) [%]
66 ns/100m66 %
Current
Max. Recommended Current [A]
2.1 Amps per conductor @ 25°C A
Voltage
UL DescriptionUL Voltage Rating
UL AWM Style 291930 V RMS (UL AWM Style 2919)
CM300 V RMS (CM)

Temperature Range

Operating Temp Range: -20°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 39 lbs/1000ft
Max Recommended Pulling Tension: 44 lbs
Min Bend Radius/Minor Axis: 3.25 in

Standards

NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
UL AWM Style: 2919 (30 V 80°C)
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 30 V RMS (UL AWM Style 2919)

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
9681 060500ChromeReel500 ft612825256960
9681 0601000ChromeReel1,000 ft612825256953
9681 0605000ChromeReel5,000 ft612825256977
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.256 Revision Date: 04-28-2020
Date: 2004-01-01
No accessories are available for this product
