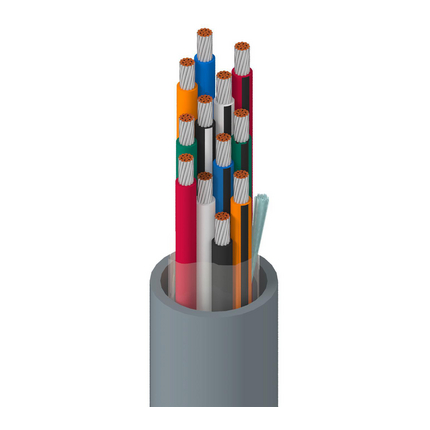

9623 - Electronic, 5 C #14 Str TC, PVC Ins, PVC Jkt


Electronic, 5 Conductor 14AWG (19x27) Tinned Copper, PVC Insulation, PVC Outer Jacket

Product Overview

Suitable Applications: up to 600V analog signals ; up to 600V control ; line level audio; voice communications; panel wiring

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Conductor(s)514 AWG19x27TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessColor Code
Conductor(s)PVC - Polyvinyl Chloride0.045 in (1.1 mm)Black, White, Red, Green, Orange
Outer Jacket
MaterialNom. ThicknessNom. Diameter
PVC - Polyvinyl Chloride0.060 in (1.5 mm)0.573 in (14.6 mm)
Overall Cable Diameter (Nominal): 0.573 in (14.6 mm)

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
Conductor(s)2.8 Ohm/1000ft (9.2 Ohm/km)18 pF/ft (59 pF/m)7.5 Amps per Conductor at 25ºC
Voltage
Voltage Rating
600 V

Mechanical Characteristics

Temperature
Operating
-20°C To +80°C
Max. Pull Tension: 237 lbs (108 kg)
Bulk Cable Weight: 181 lbs/1000ft (269 kg/km)

Standards and Compliance

Environmental Suitability: Indoor (Not Riser or Plenum)
Flammability / Reaction to Fire: UL 1581 (VW-1), FT1, VW-1
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.337 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorUPC
9623 0601000Chrome612825256786
9623 060500Chrome612825256793
Date: 2005-10-01
