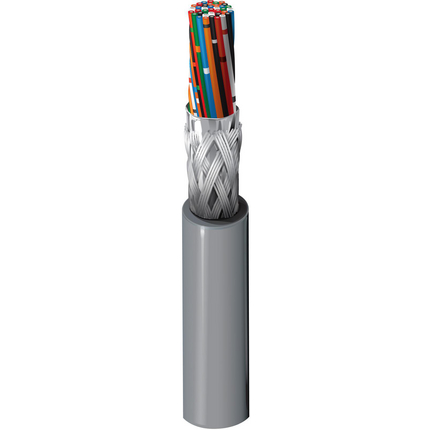

9618 - RS232, #24-37c, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG


Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Product Overview

Suitable Applications: RS-232 applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital control (24v, …); Line Level Audio; Panel Wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)247x32TC - Tinned Copper37
Conductor Count: 37
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)S-R PVC - Semi-Rigid Polyvinyl Chloride0.0105 in
Color Chart
NumberColor
1Black
2White
3Red
4Green
5Orange
6Blue
7White/Black Stripe
8Red/Black Stripe
9Green/Black Stripe
10Orange/Black Stripe
11Blue/Black Stripe
12Black/White Stripe
13Red/White Stripe
14Green/White Stripe
15Blue/White Stripe
16Black/Red Stripe
17White/Red Stripe
18Orange/Red Stripe
19Blue/Red Stripe
20Red/Green Stripe
21Orange/Green Stripe
22Black/White/Red Stripes
23White/Black/Red Stripes
24Red/Black/White Stripes
25Green/Black/White Stripes
26Orange/Black/White Stripes
27Blue/Black/White Stripes
28Black/Red/Green Stripes
29White/Red/Green Stripes
30Red/Black/Green Stripes
31Green/Black/Orange Stripes
32Orange/Black/Green Stripes
33Blue/White/Orange Stripes
34Black/White/Orange Stripes
35White/Red/Orange Stripes
36Orange/White/Blue Stripes
37White/Red/Blue Stripes
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]
Tape1Alum / PolyBeldfoil®100 %
Braid2TC - Tinned Copper65 %
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.411 in0.040 in

Electrical Characteristics

Conductor DCR
Max. Conductor LoopNominal Conductor DCRNominal Outer Shield DCR
15.24 Ohm/1000ft25 Ohm/1000ft4.4 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
30 pF/ft55 pF/ft
Current
Max. Recommended Current [A]
1.0 Amp per conductor @ 25°C A
Voltage
UL DescriptionUL Voltage Rating
CMG300 V
UL AWM 2464300 V

Temperature Range

UL Temp Rating: 80°C (UL AWM 2464)
Operating Temp Range: -30°C to +80°C

Mechanical Characteristics

Bulk Cable Weight: 122 lbs/1000ft
Min Bend Radius/Minor Axis: 4.25 in
Dimensions (WxHxD)
Height
15.281

Standards

NEC Articles: 800
NEC/(UL) Specification: CMG
CEC/C(UL) Specification: CMG
UL AWM Style: 2464

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
CA Prop 65: Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 FT4 Loading
CSA Flammability: FT4
UL voltage rating: 300 V

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
9618 060100ChromeReel100 ft612825256588
9618 060500ChromeReel500 ft612825256601
9618 0601000ChromeReel1,000 ft612825256595
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.296 Revision Date: 05-19-2020
Date: 2005-10-01
