9615 - RS232, #24-10c, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

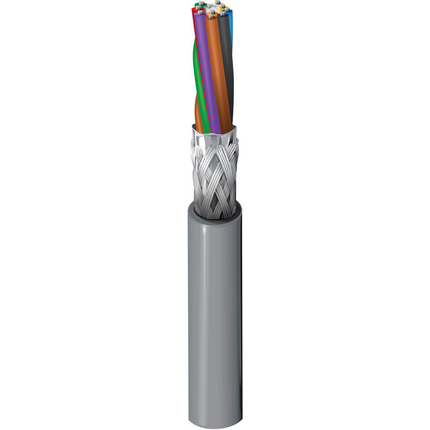

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket

Product Overview

Suitable Applications: RS-232 applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital control (24v, …); Line Level Audio; Panel Wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Conductors
Conductor(s)247x32TC - Tinned Copper10
Conductor Count: 10
Insulation
ElementMaterialNominal Wall Thickness
Conductor(s)S-R PVC - Semi-Rigid Polyvinyl Chloride0.0105 in
Color Chart
NumberColor
1Black
2White
3Red
4Green
5Brown
6Blue
7Orange
8Yellow
9Purple
10Gray
Outer Shield Material
TypeLayerMaterialMaterial Trade NameCoverage [%]
Tape1Alum / PolyBeldfoil®100 %
Braid2TC - Tinned Copper65 %
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.271 in0.035 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
25 Ohm/1000ft6.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to ShieldNom.Mutual Capacitance
30 pF/ft55 pF/ft15 pF/ft
Current
Max. Recommended Current [A]
1.5 Amps per conductor @ 25°C A
Voltage
UL DescriptionUL Voltage Rating
CMG300 V
UL AWM 2464300 V

Temperature Range

UL Temp Rating: 80°C (UL AWM 2464)
Operating Temp Range: -30°C to +80°C

Mechanical Characteristics

Bulk Cable Weight: 46 lbs/1000ft
Min Bend Radius/Minor Axis: 2.75 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMG
CEC/C(UL) Specification: CMG
UL AWM Style: 2464

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 FT4 Loading
CSA Flammability: FT4
UL voltage rating: 300 V

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
9615 060100ChromeReel100 ft612825256496
9615 060500ChromeReel500 ft612825256519
9615 0601000ChromeReel1,000 ft612825256502
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.287 Revision Date: 05-19-2020
Date: 2005-10-01
