9613 - RS232, #24-8c, SR-PVC, O/A Foil+Braid, PVC Jkt, CMG

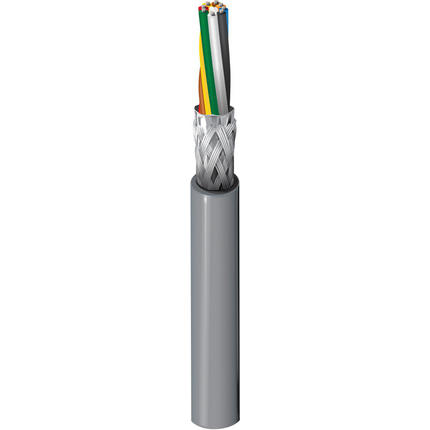

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, semi-rigid PVC insulation, overall Beldfoil® (100% coverage) + tinned copper braid shield (65% coverage), PVC jacket.

Product Overview

Suitable Applications: RS-232 applications; Computer Communications; Low Voltage Analog signals (4-20ma, 0-10v, ...); Low Voltage Digital control (24v, …); Line Level Audio; Panel Wiring

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Conductor(s)8247x32TC - Tinned Copper
Insulation
ElementMaterialThickness [in.]Color Code
Conductor(s)SR-PVC - Polyvinyl Chloride (Semi-Rigid)0.011Black, White, Red, Green, Brown, Blue, Orange, Yellow
Outer Shield Material
Shield TypeMaterialCoverage
Tape + BraidBi-Laminate (Alum+Poly) + Tinned Copper (TC)100% + 65%
Outer Jacket Material
MaterialThicknessNom. Diameter
PVC - Polyvinyl Chloride0.035 in0.240 in
Cable Diameter (Nominal): 0.240 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
Conductor(s)25 Ohm/1000ft30 pF/ft55 pF/ft1.5 Amps per Conductor at 25ºC
Nom Outer Shield DCR: 7.3 Ohm/1000ft
Voltage
UL Voltage Rating
300 V (CMG), 300 V (UL AWM 2464)

Mechanical Characteristics

Temperature
UL RatingOperating
80°C (UL AWM 2464)-30°C to +80°C
Bend Radius
Stationary Min.Installation Min.
2.5 in2.4 in
Max. Pull Tension: 69 lbs
Bulk Cable Weight: 37 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
Flammability / Fire Resistance: UL1685 FT4 Loading, FT4, FT4, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMG
AWM Compliance: 2464
CEC / C(UL) Compliance: CMG
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.335 Revision Date: 09-30-2020
Date: 2005-10-01
