9552 - High Perform Instr, 2 Pr #18 Str TC, PVC Ins E2, OS, PVC Jkt, PLTC-ER

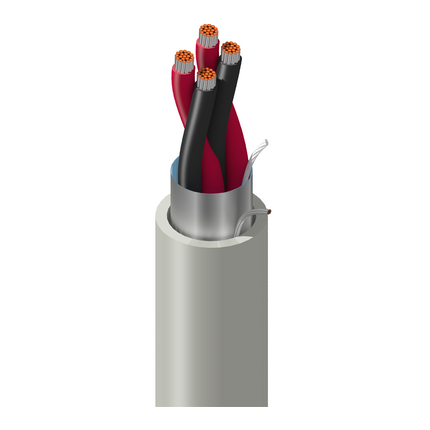

High Performance Instrumentation, 2 Pair 18AWG (19x30) Tinned Copper, PVC Insulation E2 Color Code, Overall Beldfoil® Shield, PVC Outer Jacket, PLTC-ER

Product Overview

Suitable Applications: Instrumentation, Sensors, Valves, Positioners, 4-20mA, 0-10V

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Pair(s)218 AWG19x30TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessColor Code
Pair(s)PVC - Polyvinyl Chloride0.019 in (0.48 mm)Black, Red and Numbered
Outer Shield
Shield TypeMaterialCoverageDrainwire Type
TapeBi-Laminate (Alum+Poly)100%18 AWG (7x26) TC
Outer Jacket
SeparatorMaterialNom. ThicknessNom. DiameterRipcord
PO - Polyolefin (Foam) TapePVC - Polyvinyl Chloride0.053 in (1.3 mm)0.417 in (10.6 mm)Yes
Overall Cable Diameter (Nominal): 0.420 in (10.7 mm)

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Shield
Pair(s)6.0 Ohm/1000ft (20 Ohm/km)35 pF/ft (110 pF/m)54 pF/ft (180 pF/m)
Voltage
UL Voltage Rating
300 V (PLTC, CMG), 150 V (ITC)

Mechanical Characteristics

Temperature
UL TemperatureOperating
105°C-30°C to +105°C
Table Notes: AWM 80°C
Bend Radius
Stationary Min.Installation Min.
4.2 in (110 mm)4.2 in (110 mm)
Max. Pull Tension: 121 lbs (54.9 kg)
Bulk Cable Weight: 63 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire: UL1685 UL Loading, FT4, FT4, T-29-520, IEEE 1202
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC-ER, PLTC-ER
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.382 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorUPC
9552 0601000Chrome612825255772
9552 060500Chrome612825255789
9552 0605000Chrome612825255796
