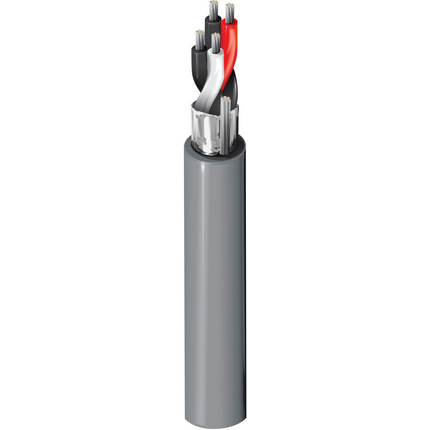

(109)2-Pair, 24 AWG stranded (7x32) TC conductors, PE insulation, twisted pairs, overall Beldfoil shield (100% coverage), 24 AWG stranded TC drain Wire, LSZH jacket, Flame resistance IEC 60332-3C
| Suitable Applications: | Instrumentation and computer cable; For EIA RS-232 data transmission applications |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 24 | 7x32 | TC - Tinned Copper | 2 |
| Conductor Count: | 4 |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PE - Polyethylene | 1.12 mm | 0.05 mm |
| Number | Color |
|---|---|
| Pair 1 | Black & Red |
| Pair 2 | Black & White |
| Type | Material | Material Trade Name | Thickness of Foil | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 9 / 12 µm | TC - Tinned Copper | AWG24/7 |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 5.8 mm | 0.9 mm |
| Description |
|---|
| 2 pairs twisted to cable core |
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 78.7 Ohm/km | 55.8 Ohm/km |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 98.4 pF/m | 164 pF/m |
| Frequency [MHz] | Nominal Characteristic Impedance |
|---|---|
| N/A | 75 Ohm |
| Element | Max. Recommended Current [A] |
|---|---|
| Conductor(s) | 1.76 Amps per Conductor |
| Voltage Rating [V] |
|---|
| 300 V |
| Installation Temperature Range: | -15°C To +80°C |
| Storage Temperature Range: | -45°C To +80°C |
| Operating Temp Range (Flexible Install): | -15°C To +80°C |
| Operating Temp Range (Fixed Install): | -45°C To +80°C |
| Oil Resistance: | IEC 60811-404 |
| Max. Pull Tension: | 100 N |
| Min. Bend Radius During Installation: | 58 mm |
| CPR Euroclass: | Dca-s1,d1,a1 |
| CENELEC Compliance: | EN 50290-2-20 |
| Environmental Space: | Indoor - Euroclass Dca |
| Suitability - Sunlight Resistance: | Yes |
| IEC Flammability: | IEC 60332-1-2, IEC 60332-3-24 |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| IEC 61034-2 - Smoke Density Min. Transmittance: | 60% |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 9502NH.00152 | Chrome | Reel | 152 m | 8719605020987 |
| 9502NH.00305 | Chrome | Reel | 305 m | 8719605020994 |
| 9502NH.00500 | Chrome | Reel | 500 m | 8719605021007 |
| 9502NH.001000 | Chrome | Reel | 1,000 m | 8719605020970 |
| Update and Revision: | Revision Number: 0.219 Revision Date: 12-22-2023 |
