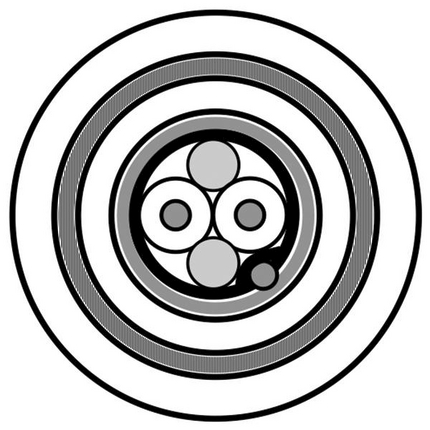

(10)Blue Hose, 1 Pair AWG 20 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Foil + Braid(s) shielding, LSZH / FRNC jacket ,
| Suitable Applications: | Twinaxial instrumentation and computer cable; For data transmission applications; Suitable for outdoor application (sunlight resistant) and direct burial |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 20 | 7x28 | TC - Tinned Copper | 1 |
| Conductor Count: | 2 |
| Total Number of Pairs: | 1 |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PE - Polyethylene | 1.96 mm | 0.05 mm |
| Number | Color |
|---|---|
| Pair 1 | Clear & Blue |
| Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|
| Tape | Alum / Poly | Beldfoil® (Z-Fold®) | TC - Tinned Copper | AWG20/7 | |
| Braid | TC - Tinned Copper | 55 % |
| Material | Color | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen flame retardant | Blue (RAL 5012) | 6.35 mm | 0.89 mm |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen flame retardant | 10.75 mm | 1.3 mm |
| Description | Filler |
|---|---|
| 1 pair and 2 fillers twisted to cable core | Polyethylene (2x) (Clear, 1.32 mm) |
| Type of Armor | Material | Thickness of Armoring Wires | Coverage Percentage |
|---|---|---|---|
| Steel Wire Armoring | Galvanized steel wire | 0.9 mm | Min. 95 % |
| Max. DCR Unbalance | Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|---|
| 2.53 % | 31.2 Ohm/km | 13.5 Ohm/km |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|
| 64.6 pF/m | 118.1 pF/m |
| Frequency [MHz] | Nominal Characteristic Impedance |
|---|---|
| N/A | 78 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 1 MHz | 1.97 dB/100m |
| 10 MHz | 6.89 dB/100m |
| 50 MHz | 11.81 dB/100m |
| 100 MHz | 24.61 dB/100m |
| 200 MHz | 36.09 dB/100m |
| 400 MHz | 52.49 dB/100m |
| Nominal Velocity of Propagation (VP) [%] |
|---|
| 66 % |
| Voltage Rating [V] |
|---|
| 300 V |
| Installation Temp Range: | -15°C To +80°C |
| Storage Temp Range: | -45°C To +80°C |
| Operating Temp Range (Flexible Install): | -15°C To +80°C |
| Operating Temp Range (Fixed Install): | -45°C To +80°C |
| Oil Resistance: | IEC 60811-404 |
| Min Bend Radius During Installation: | 161.25 mm |
| CENELEC Compliance: | EN 50290-2-27 |
| Environmental Space: | Outdoor |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2005-01-01 |
| Suitability - Sunlight Resistance: | Yes |
| ISO/IEC Flammability: | IEC 60332-3-24 |
| Amount of Halogen acc. to IEC 60754-1 & EN50267-1: | Zero |
| Item # | Color | Putup Type | Length | EAN |
|---|---|---|---|---|
| 9463LS.00500 | Blue | Reel | 500 m | 8719605020697 |
| 9463LS.001000 | Blue | Reel | 1,000 m | 8719605020673 |
| 9463LS.001500 | Blue | Reel | 1,500 m | 8719605020680 |
| Update and Revision: | Revision Number: 0.172 Revision Date: 04-08-2020 |
