9445MN - SpaceMaker™, 5 C #20 Str TC, PO Ins, PVC Jkt, AWM 2937

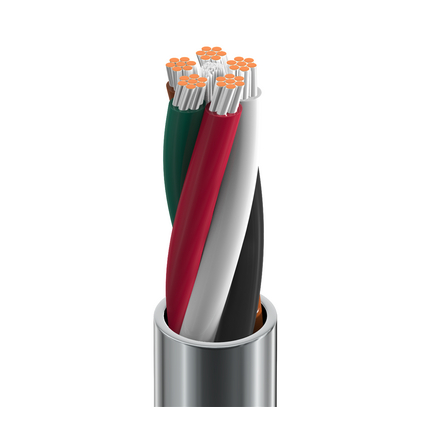

SpaceMaker™, 5 Conductor 20AWG (26x34) Tinned Copper, PO Insulation, PVC Outer Jacket, AWM 2937

Construction Details

Conductor
ElementNo. of ElementsSizeStrandingMaterial
Conductor(s)520 AWG26x34TC - Tinned Copper
Insulation
ElementMaterialNom. ThicknessNom. Insulation DiameterColor Code
Conductor(s)PP - Polypropylene0.010 in (0.25 mm)0.057 in (1.4 mm)Black, White, Red, Green, Brown
Outer Shield
Material
No Shield
Outer Jacket
MaterialNom. ThicknessNom. Diameter
PVC - Polyvinyl Chloride0.016 in (0.41 mm)0.186 in
Overall Cable Diameter (Nominal): 0.186 in

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Capacitance Cond-to-CondNom. Characteristic ImpedenceMax. Current
11.2 Ohm/1000ft15.7 pF/ft (51.5 pF/m)47 Ohm3.04 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V

Mechanical Characteristics

Temperature
UL TemperatureOperating
80°C-20°C To +80°C
Bend Radius
Stationary Min.Installation Min.
0.740 in (18.8 mm)0.740 in
Max. Pull Tension: 65 lbs (29 kg)
Bulk Cable Weight: 25 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor
AWM Compliance: AWM 2937
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)

History

Update and Revision: Revision Number: 0.209 Revision Date: 05-05-2023

Part Numbers

Variants
Item #ColorPutup TypeLengthUPC
9445MN 006100Blue, LightReel100 ft612825389453
9445MN 0061000Blue, LightReel1,000 ft612825389484
9445MN 008100GrayReel100 ft612825389460
9445MN 0081000GrayReel1,000 ft612825389491
9445MN 004100YellowReel100 ft612825389446
9445MN 0041000YellowReel1,000 ft612825389477
