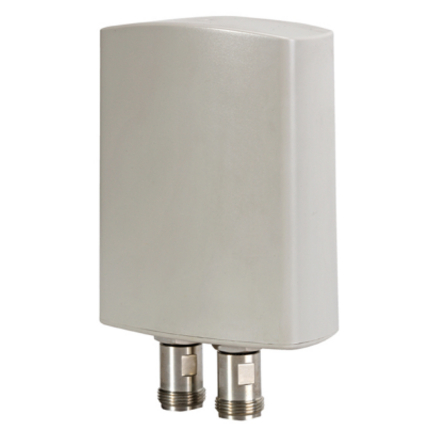

BAT-ANT-N-9A-DS-IP65 - Directional diversity antenna


Directional diversity antenna linear for 5 GHz

Product description

Description: directional diversity antenna linear for 5 GHz
Part Number: 943 981-010
Cable specification: N plug to N plug
Cable Length: 1 m

Radio technology

Antenna connector: N female
Elevation, Azimuth: 3 dB beam width 60º / 60º
Frequency band: 5150 MHz - 5875 MHz
Gain: 9 dBi
Polarisation: dual linear, +/- 45º slant
VSWR: 1.6

Ambient conditions

Operating temperature: -40-+80 °C
Storage/transport temperature: -40-+80 °C
Wind load: 15 N at 160 km/h

Mechanical construction

Dimensions (W x H x D): 101 mm x 80 mm x 35 mm
Weight: 0.11 kg
Material: LEXAN EXL 9330
Mounting: Wall, mast
Protection class: IP65

Scope of delivery and accessories

Scope of delivery: antenna, 2x 1 m cable, mounting material, 2x Pigtail N to RP-SMA
