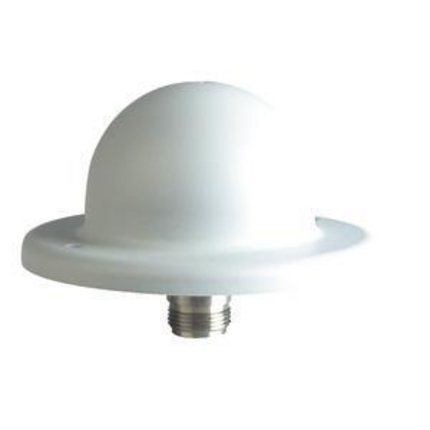

BAT-ANT-N-6ABG-IP65 - Hemispherical antenna


Hemispherical antenna for 2.4 and 5 GHz band

Product description

Description: Hemispherical antenna for 2.4 and 5 GHz band
Part Number: 943 981-004
Cable specification: N-plug to N-plug
Cable Length: 1 m

Radio technology

Antenna connector: N female
Elevation, Azimuth: vertical hemispherical, horizontal 360º
Frequency band: 2400 MHz - 6000 MHz
Gain: 2.4 GHz: 6.0 dBi; 5 GHz: 8.0 dBi with 1sqm ground plate
Polarisation: linear, vertical
Range: refer to antenna distance calculator
VSWR: 2

Ambient conditions

Operating temperature: -40-+80 °C
Storage/transport temperature: -40-+80 °C
Wind load: 10 N at 160 km/h

Mechanical construction

Dimensions (W x H x D): Ø 86 mm x 43 mm
Weight: 0.3 kg
Material: ASA
Mounting: Ceiling, cabinet
Protection class: IP65, with sealing ring

Scope of delivery and accessories

Scope of delivery: antenna, 1 m cable, pigtail, sealing ring
