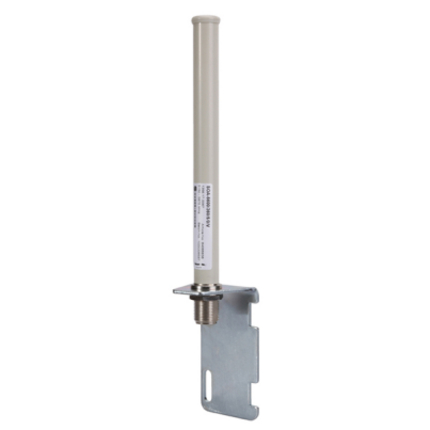

BAT-ANT-N-5A-IP65 - Omnidirectional antenna


Omnidirectional antenna for 5 GHz band

Product description

Description: Omnidirectional antenna for 5 GHz band
Part Number: 943 981-003
Cable specification: N-plug to N-plug
Cable Length: 1 m

Radio technology

Antenna connector: N female, DC grounded
Elevation, Azimuth: vertical: 25º, horizontal: 360º
Frequency band: 5150 MHz - 5875 MHz
Gain: 5 dBi
Polarisation: linear, vertical
Range: refer to antenna distance calculator
VSWR: 1.5

Ambient conditions

Operating temperature: -45-+70 °C
Storage/transport temperature: -45-+70 °C

Mechanical construction

Dimensions (WxHxD): 16 x 160 mm
Weight: 0.3 kg
Material: Polypropylen
Mounting: Wall, mast
Protection class: IP65

Scope of delivery and accessories

Scope of delivery: antenna, 1 m cable, pigtail, mounting material

Further Instructions

Update and Revision: Revision Number: 0.52 Revision Date: 10-23-2020
