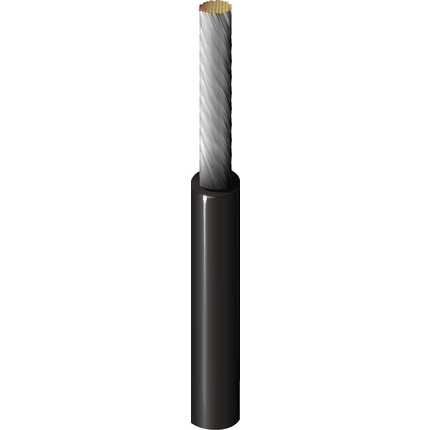

9438 - Lead Wire, #14 Str TC, PO Ins


Low Temp Plastic Lead Wire, 14AWG (104x34) Tinned Copper, PO Insulation

Product Overview

Suitable Applications: direct burial , roadway loop cables

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
14104x34TC - Tinned Copper1
Conductor Count: 1
Insulation
MaterialNominal DiameterNominal Wall Thickness
PE - Polyethylene0.139 in0.032 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
2.7 Ohm/1000ft
Voltage
Non-UL Voltage RatingSuggested Working VoltageUL Voltage Rating
600 V RMS600 V RMS600 V

Temperature Range

Non-UL Temp Rating: 80°C
UL Temp Rating: 80°C

Mechanical Characteristics

Bulk Cable Weight: 18 lbs/1000ft

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: No
EU RoHS Compliance Date (yyyy-mm-dd): 2004-07-01
CA Prop 65: Yes
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL voltage rating: N/A

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
9438 0101000BlackReel1,000 ft612825248392
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.296 Revision Date: 07-26-2020
Date: 2004-07-01
