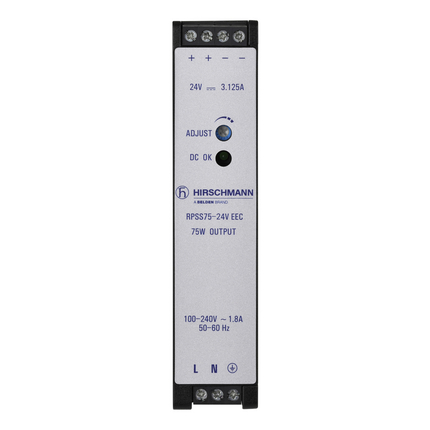

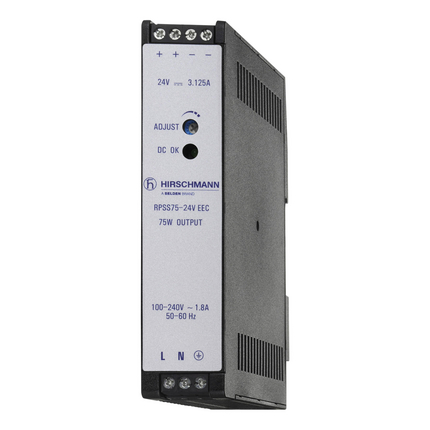

RPSS75-24V EEC - 24 V DC DIN rail power supply unit




Din-Rail power supply, 75 W output power, 24 V DC output voltage, 100-240 V AC input voltage, operating temperature -20 ºC up to +70 ºC

Product description

Type: RPSS75-24V EEC
Part Number: 942343075

More Interfaces

Voltage input: 1 x terminal block, 3-pin
Voltage output: 1 x terminal block, 4-pin

Power requirements

Current consumption: max. 1.4 A at 115 V AC, 0.9 A at 230 V AC
Input voltage: 100-240 V AC
Operating Voltage: 85-264 V AC
Output current: 3,125 A
Activation Current: 50 A at 230 V AC

Power Output

Output voltage: 24 V DC

Ambient conditions

Operating temperature: -20-+70 °C
Note: derating starting at 40°C with 115 V ACbr derating starting at 50°C with 230 V AC
Storage/transport temperature: -40-+85 °C
Relative humidity (non-condensing): 5-95 %

Mechanical construction

Dimensions (WxHxD): 27 mm x 123,6 mm x 102 mm
Weight: 220 g
Mounting: DIN Rail
Protection class: IP20

Mechanical stability

IEC 60068-2-27 shock: 10 g, 11 ms duration

EMC interference immunity

EN 61000-4-2 electrostatic discharge (ESD): ± 8 kV contact discharge; ± 15 kV air discharge
EN 61000-4-5 surge voltage: power lines: 4 kV (line/earth), 2 kV (line/line)

Approvals

Basis Standard: CE, UKCA, RCM, BIS
Safety of industrial control equipment: UL 62368, UL 61010-1
Transportation: EN50121-4

Reliability

Guarantee: 24 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery: Rail power supply, Description and operating manual

Further Instructions

History

Update and Revision: Revision Number: 0.28 Revision Date: 05-13-2025
Variants
Item #Type
942343075RPSS75-24V EEC
User Manual Installation RPSS75-24V EEC (DIN-Rail power supply, 1 AC / 24 V DC / 3.125 A) (English)
Description: The “Installation” user manual contains a device description, safety instructions, and other information that you need to install the device before you begin with the configuration of the device.
Version: 01
