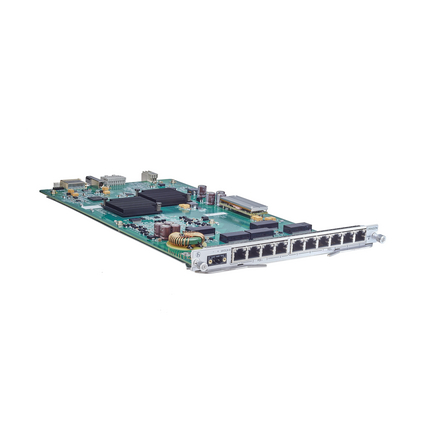

D4K-10TP-PoE - DRAGON MACH4x00 media module with 10x FE/GE PoE+ ports; field-replaceable


DRAGON MACH4x00 media module with 10x FE/GE PoE+ ports; field-replaceable

Product description

Type: D4K-10TP-RJ45/PoE+, Linecard
Part Number: 942294001
Port type and quantity: 10 x 10/100/1000 Mbit/s RJ45 sockets für TP cable all ports support PoE/PoE+, auto-crossing, auto-negotiation, auto-polarity

Power requirements

Operating Voltage: Power supply via the backplane of the switch, PoE (Type 1) 48V (47 - 57V), PoE+ (Type 2) 54V (52 - 57V)
Power consumption: 15 W via the backplane + up to 300 W from external PoE power supply (depends on PoE-loads)

Ambient conditions

Operating temperature: 0-+60 °C
Storage/transport temperature: -40-+70 °C

Mechanical construction

Dimensions (WxHxD): 220 mm x 334 mm x 23 mm
Weight: 650 g
Mounting: Plug-in device

Approvals

Safety of industrial control equipment: cUL61010-1/-2-201 (pending), EN60950-1

Reliability

Guarantee: 60 months (please refer to the terms of guarantee for detailed information)

Scope of delivery and accessories

Scope of delivery: Device

Further Instructions

Product Documentation: https://www.doc.hirschmann.com

History

Update and Revision: Revision Number: 0.53 Revision Date: 10-24-2023
Variants
Item #Type
942294001D4K-10TP-PoE, Linecard
EU Declaration of conformity
Version: 2021-02-19
Anwender-Handbuch Installation DRAGON MACH Familie (Deutsch)
Description: The “Installation” user manual contains a device description, safety instructions, and other information that you need to install the device before you begin with the configuration of the device.
Version: 06
User Manual Installation DRAGON MACH Family (English)
Description: The “Installation” user manual contains a device description, safety instructions, and other information that you need to install the device before you begin with the configuration of the device.
Version: 06
