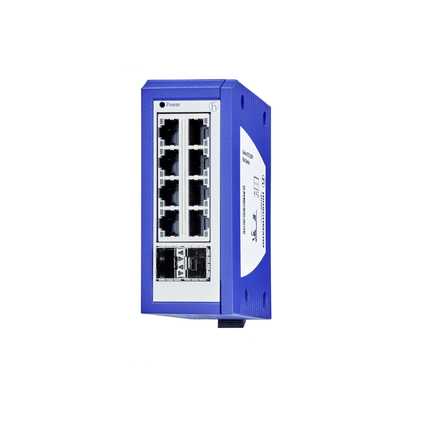

GECKO 8TX/2SFP - 8x FE TX, 2x FE/GE SFP 12-24 V DC, -40-+70°C, Lite Managed


Lite Managed Industrial ETHERNET Rail-Switch, Ethernet/Fast-Ethernet Switch with Gigabit Uplink, Store and Forward Switching Mode, fanless design

Product description

Type: GECKO 8TX/2SFP
Description: Lite Managed Industrial ETHERNET Rail-Switch, Ethernet/Fast-Ethernet Switch with Gigabit Uplink, Store and Forward Switching Mode, fanless design
Part Number: 942291002
Port type and quantity: 8 x 10BASE-T/100BASE-TX, TP-cable, RJ45-sockets, auto-crossing, auto-negotiation, auto-polarity, 2 x 100/1000 MBit/s SFP

More Interfaces

Power supply/signaling contact: 1 x plug-in terminal block, 3-pin

Network size - length of cable

Twisted pair (TP): 0-100 m

Network size - cascadibility

Line - / star topology: any

Power requirements

Operating Voltage: 9.6 V - 32 V DC

Software

Switching: TOS/DSCP prioritization (Mapping TOS/DSCP to 802.1D/p), QoS (4 queues), Static unicast/multicast filter entries (up to 100), Flow Control
Redundancy: RSTP (IEEE 802.1D-2004)
Management: HTML5 Web-Interface, TFTP config file/firmware transfer, SNMP V1/V2/V3
Diagnostics: Device status indication (LEDs), Log-File, RMON (1) statistics, Simple interface statistics, Topology Discovery according to IEEE 802.1AB
(LLDP)
Configuration: BOOTP/DHCP, HiDiscovery
Security: SNMPv3 (authNoPriv), Possibility to disable each port, SSH, SSL, MAC-Based Port Security, Secure Boot
Time synchronisation: SNTP Client

Ambient conditions

Operating temperature: -40-+70 °C
Storage/transport temperature: -40-+85 °C
Relative humidity (non-condensing): 5-95 %

Mechanical construction

Dimensions (W x H x D): 38 x 102 x 79 mm (w/o terminal block)
Mounting: DIN Rail
Protection class: IP30

EMC emitted immunity

EN 55032: EN 55032 Class A

Approvals

Safety of industrial control equipment: cUL 61010-1 (pending)

Scope of delivery and accessories

Accessories to Order Separately: Rail power supply RPS 30, RPS 80 EEC or RPS 120 EEC (CC), Fast Ethernet SFP Transceivers, Fast Ethernet Bi-Directional SFP Transceivers, Gigabit Ethernet SFP Transceivers, Gigabit Ethernet Bi-Directional SFP Transceivers , Mounting Accessories
Scope of delivery: Device, terminal block, operating manual
Update and Revision: Revision Number: 0.23 Revision Date: 04-23-2020
