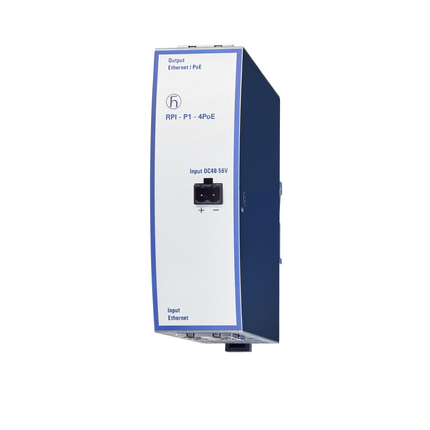

Rail Power Injector, RPI-P1-4PoE - Industrial, fanless Fast/Gigabit PoE Injector, PoE/PoE+ (IEEE 802.3at), 30W (25.5W at load) per port


The RPI-P1-4PoE is a DIN-rail mountable injector, which provides power for Power over Ethernet (PoE and PoE+) applications. It injects power to 4 individual PoE channels (IEEE 802.3at) via RJ45 Ethernet ports to supply powered devices (PD) of type 1 and type 2.

Product description

Part Number: 942227001
Port type and quantity: 4 x 10/100/1000 BASE-TX ports

Power requirements

Operating Voltage: 48 - 56 VDC
Power consumption: 125 W

Ambient conditions

MTBF: 152 years (48V/2.7A) (according SN29500, IEC61709)
Operating temperature: -25-+60 °C
Relative humidity (non-condensing): 5-95 %

Mechanical construction

Dimensions (WxHxD): 39 mm x 128 mm x 117 mm
Weight: 340 g
Protection class: IP20

Approvals

Safety of industrial control equipment: EN60950-1, EN 61131-2 , cUL60950-1 (pending)
Transportation: EN50121-4

Reliability

Guarantee: 24 months (please refer to the terms of guarantee for detailed information)

Further Instructions

Product Documentation: https://www.doc.hirschmann.com

History

Update and Revision: Revision Number: 0.56 Revision Date: 05-31-2024
