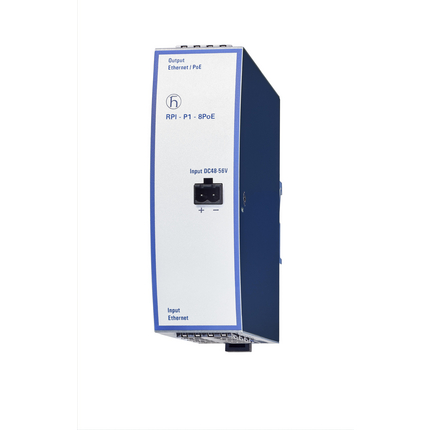

Rail Power Injector, RPI-P1-8PoE - Industrial, fanless Fast/Gigabit PoE Injector, PoE/PoE+ (IEEE 802.3at), 30W (25.5W at load) per port


The RPI-P1-8PoE is a DIN-rail mountable DC-only input PoE injector with built-in PoE+ functionality. It provides 8x RJ45 Ethernet ports for data input and 8xRJ45 Ethernet ports with PoE+ according to standard IEEE802.3at.

Product description

Type: RPI-P1-8PoE
Part Number: 942 225-001
Port type and quantity: 8 x 10/100/1000 BASE-TX ports

Power requirements

Operating Voltage: 48 - 56 VDC
Power consumption: 245 W

Ambient conditions

MTBF: 152 years (48V/5,4A) (according SN29500, IEC61709)
Operating temperature: -40-+85 °C
Relative humidity (non-condensing): 5-95 %

Mechanical construction

Weight: 360 g
Protection class: IP20

Approvals

Safety of industrial control equipment: EN60950-1, EN 61131-2 , cUL60950-1 (pending)
Transportation: EN50121-4

Scope of delivery and accessories

Variants
Item #Type
942225001RPI-P1-8PoE
Update and Revision: Revision Number: 0.22 Revision Date: 01-23-2020
Hirschmann Accessories - Selection Guide
Description: A wide range of system accessories that perfectly support industrial Ethernet and wireless solutions.
Version: English
EU Declaration of conformity
Version: 18-12-04
Safety and general information sheet (English)
Description: The document “Safety and general information sheet” contains safety instructions and hyperlinks to our product pages where you can download the "User Manual Installation" necessary for the installation and operation of your device. The document also contains information for the first login (password).
Version: 09
Sicherheits- und Informationsblatt (Deutsch)
Description: The document “Safety and general information sheet” contains safety instructions and hyperlinks to our product pages where you can download the "User Manual Installation" necessary for the installation and operation of your device. The document also contains information for the first login (password).
Version: 09
User Manual Installation RPI-P1-8PoE (English)
Description: The “Installation” user manual contains a device description, safety instructions, and other information that you need to install the device before you begin with the configuration of the device.
Version: 2018-11
No accessories are available for this product
