9420 - Portable Cordage, 5 C #16 Str BC, EPDM Ins, CPE Jkt, UL Type SO

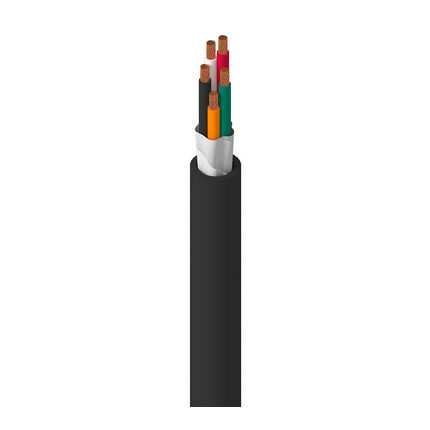

Portable Cordage, 5 Conductor 16AWG (65x34) Bare Copper, EPDM Insulation, CPE Outer Jacket, UL Type SO

Product Overview

Suitable Applications: extra hard service cordage; oil resistant applications; to power tools and appliances

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1665x34BC - Bare Copper5
Conductor Count: 5
Insulation
MaterialNominal Wall Thickness
EPDM - Ethylene Propylene Diene Monomer0.033 in
Color Chart
Color
Green
Red
Orange
White
Black
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal DiameterNominal Wall ThicknessSeparator Material
CPE - Chlorinated Polyethylene (Thermoset)0.506 in0.084 inPaper Tape

Construction and Dimensions

Type of Cordage: SO
Cabling
Filler
Jute

Electrical Characteristics

Current
Max. Recommended Current [A]
8 Amps per conductor @ 25°C A
Voltage
Dielectric Withstand VoltageUL Voltage Rating
2000 Applied for 1 Min. V RMS600 V RMS
Electrical Characteristics Notes: Dielectric withstand Voltage: 2000 V AC Applied for 1 Min.

Temperature Range

UL Temp Rating: 60°C

Mechanical Characteristics

Bulk Cable Weight: 133 lbs/1000ft
Min Bend Radius/Minor Axis: 5.25 in

Standards

NEC/(UL) Specification: SO
CSA AWM Specification: SO

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

CSA Flammability: FT2
UL voltage rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPC
9420 010100Black612825240723
9420 0101000Black612825240730
Footnote: C - CRATE REEL PUT-UP.

Product Notes

Notes: Surface Printing: "16-5 SO 60°C (UL) E3462 CSA LL7874 16-5 SO 60°C FT2"

History

Update and Revision: Revision Number: 0.298 Revision Date: 04-28-2020
Date: 2004-01-01
Belden Classics
Cabling Solutions for Industrial Applications
No accessories are available for this product
