9399 - Microphone Cable, 2 Conductor 24 AWG, TC

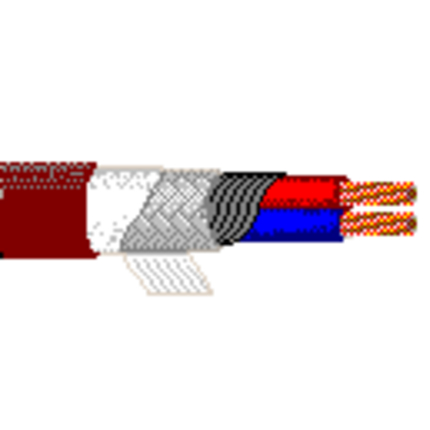

24 AWG stranded (45x40) BC alloy conductors, EPDM rubber insulation, conductive textile wrap (100% coverage), TC braid shield (65% coverage), cotton spiral, EPDM jacket.

Product Overview

Environmental Space: Indoor (Not Riser or Plenum)

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Conductors
2445x40Bare Copper Alloy0.024 in2
Conductor Count: 2
Insulation
MaterialNominal DiameterNominal Wall Thickness
EPDM - Ethylene Propylene Diene Monomer Rubber0.064 in0.02 in
Outer Shield Material
TypeLayerMaterialCoverage [%]
Tape1Conductive Textile100 %
Braid2TC - Tinned Copper65 %
Spiral Serve3Cotton
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
EPDM - Ethylene Propylene Diene Monomer Rubber0.2 in0.02 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor ResistanceNominal Outer Shield DCR
28.7 Ohm/1000ft28.7 Ohm/1000ft11.38 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
30 pF/ft55 pF/ft
Inductance
Nominal Inductance
0.019 µH/ft
Impedance
Nominal Characteristic Impedance
55 Ohm
Current
Max. Recommended Current [A]
2.2 Amps per conductor @ 25°C
Voltage
Non-UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 90°C
Operating Temp Range: -40°C To +90°C

Mechanical Characteristics

Bulk Cable Weight: 25 lbs/1000ft
Max Recommended Pulling Tension: 48 lbs
Min Bend Radius/Minor Axis: 2 in

Applicable Environmental and Other Programs

EU Directive Compliance: EU Directive 2011/65/EU (ROHS II)
EU CE Mark: Yes

Suitability

Suitability - Indoor: Yes

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCLengthFootnote
9399 001500Brown612825252559500 ftC
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.279 Revision Date: 08-22-2019
microphone-cable-product-bulletin.pdf
No accessories are available for this product
