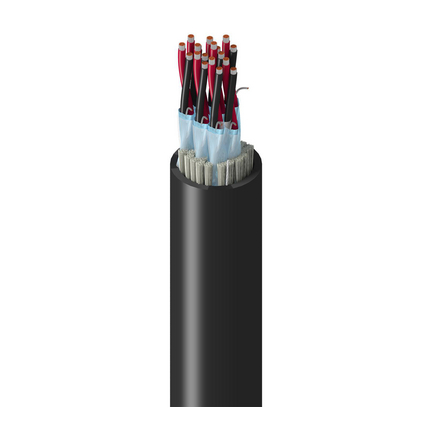

9390 - High Perform Instr, 9 Pr #18 Str TC, PVC Ins E2, IS, PVC Jkt, PLTC-ER


High Performance Instrumentation, 9 Pair 18AWG (19x30) Tinned Copper, PVC Insulation E2 Color Code, Individual Beldfoil® Shield, PVC Outer Jacket, PLTC-ER

Construction Details

Conductor
ElementNumber of ElementSizeStrandingMaterial
Pair(s)918 AWG19x30TC - Tinned Copper
Insulation
MaterialNom. ThicknessNom. Insulation DiameterColor Code
PVC - Polyvinyl Chloride0.016 in (0.41 mm)0.078 in (2.0 mm)Black, Red and Numbered
Inner Shield
ElementShield TypeMaterialCoverageDrainwire Type
Each PairTapeBi-Laminate (Alum+Poly)100%20 AWG (19x32) TC
Outer Jacket
MaterialNom. ThicknessNom. DiameterRipcord
PVC - Polyvinyl Chloride0.063 in (1.6 mm)0.667 inYes

Electrical Characteristics

Electricals
Nom. Conductor DCRNom. Inner Shield DCRNom. Capacitance Cond-to-CondNom. Capacitance Cond-to-Other (Conds + Shield)Max. Current
7.19 Ohm/1000ft0.5 Ohm/1000ft (1.6 Ohm/km)61 pF/ft (200 pF/m)112 pF/ft (367 pF/m)7 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V (PLTC-ER)

Mechanical Characteristics

Temperature
UL TemperatureOperating
105°C-30°C To +105°C
Max. Pull Tension: 579.6 lbs (262.9 kg)
Bulk Cable Weight: 244 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Sunlight Resistance, Burial
Flammability / Reaction to Fire: UL 1685 FT4 loading, FT4, IEEE 1202 FT4
NEC / UL Compliance: Article 725, Article 727, Article 800, CMG, ITC-ER, PLTC-ER
AWM Compliance: AWM 2464
CEC / C(UL) Compliance: CMG
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)

History

Update and Revision: Revision Number: 0.430 Revision Date: 04-08-2022

Part Numbers

Variants
Item #ColorUPC
9390 0601000Chrome612825239857
9390 060500Chrome612825239864
Date: 2005-04-01
