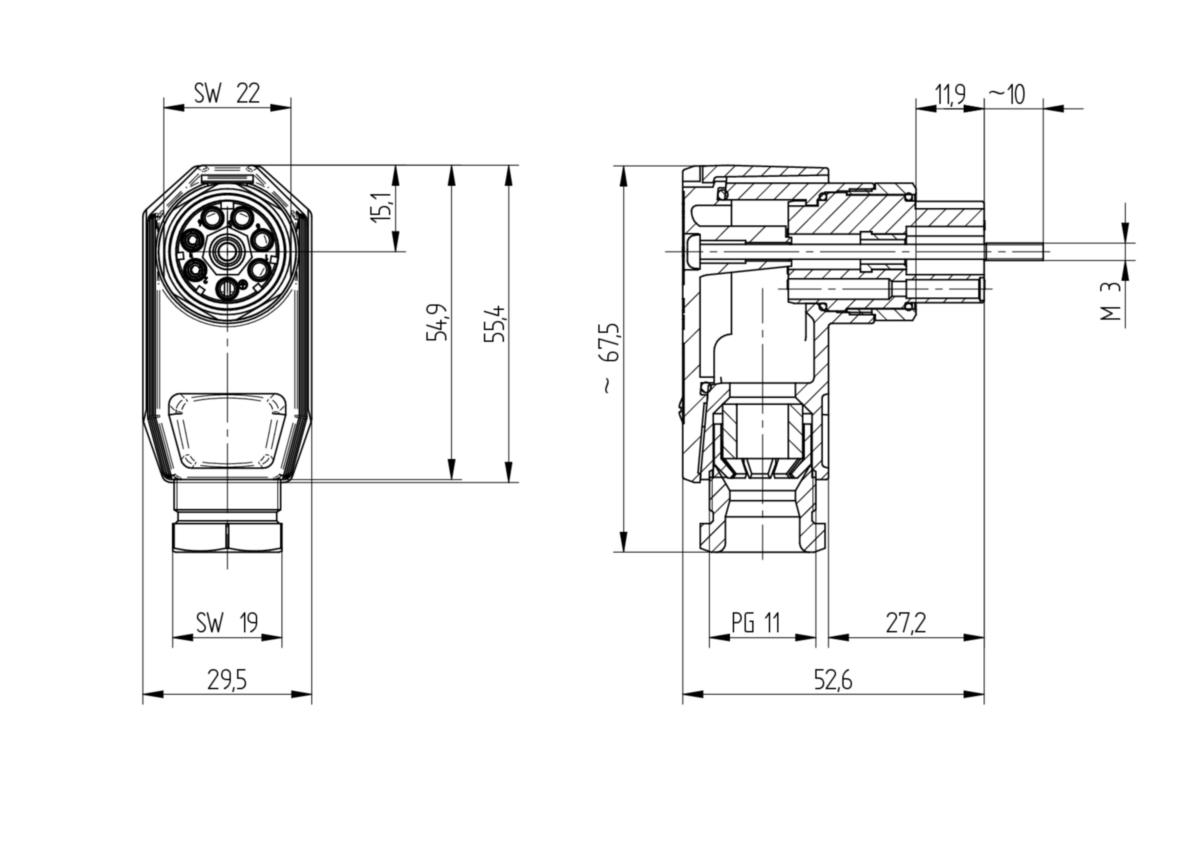

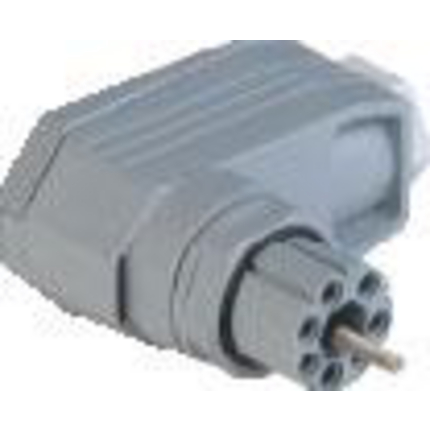

(4)NR Circular Connector, M26 x 1.5 thread, Field Attachable, Female, Angled, 6+PE pins, Grey housing, 250 V, 10 A, PG 11 w/ strain releif and clamping cage
| Note: | Do not connect or disconnect under load. |
| Description: | Cable socket angled |
| Housing Color: | grey |
| Number of Pins: | 6+PE |
| Side 1 Design Standard: | DIN EN 175201-804 |
| Strain-Relief: | clamping cage |
| Clearance / Creepage Distance: | DIN EN 60664-1 (2008/01); VDE 0110-1 |
| Contact Bearer Material: | PBT GF |
| Side 1 Contact Resistance: | ≤ 10 mOhm |
| Mating Cycles: | max. 50 |
| Side 1 Pollution Degree: | 3 acc. to DIN EN 60664-1 (VDE 0110-1) |
| Current Rating: | 10 A |
| Rated Impulse Voltage: | 4,0 kV |
| Voltage Rating: | 250 V AC/DC |
| Suitable Cables: | Ø7 mm bis Ø9 mm |
| Type of Connection: | crimp |
| Side 1 Type of Contact/Gender: | female |
| Gasket Material: | NBR |
| Housing Material: | PBT GF |
| Protection Degree / IP Rating (IEC 60529): | IP65 |
| Accessories to Order Separately: | Contact: RBC 162, 831-002-011, Codierung NC 6 |
| Fastening Torque (Cable Gland): | PG 11: (250-375) Ncm |
| Fastening torque (mounting screw): | 2,9x13: (40-50) Ncm, 2x |
| Item # | Item Description |
|---|---|
| 931553106 | N6R FF R |
| Update and Revision: | Revision Number: 0.40 Revision Date: 11-12-2025 |
