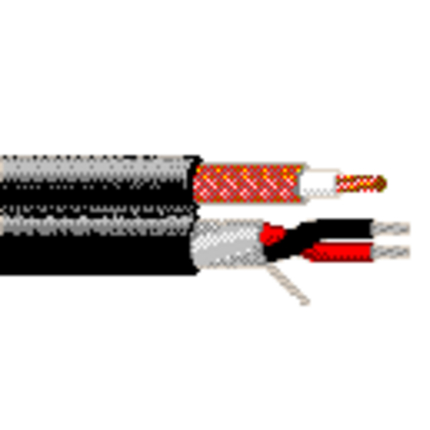

(4)Composite, RG-59 22 AWG BC Coax, stranded (7x30), BC braid 95% coverage, 1 PR 22 AWG TC, stranded (7x30), w/drain wire, PVC jacket.
| Element | AWG | Stranding | Material | Nominal Diameter | No. of Pairs | No. of Coax |
|---|---|---|---|---|---|---|
| Coax(es) | 22 | Stranded | BC - Bare Copper | 0.03 in | 1 | |
| Pair(s) | 22 | 7x30 | TC - Tinned Copper | 0.03 in | 1 |
| Total Number of Pairs: | 1 |
| Element | Material | Nominal Diameter |
|---|---|---|
| Coax(es) | PE - Polyethylene (Foam) | 0.146 in |
| Pair(s) | PVC - Polyvinyl Chloride | 0.054 in |
| Number | Color |
|---|---|
| 1 | Black |
| 2 | Red |
| Element | Type | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire Diameter | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|---|
| Coax(es) | Braid | Bare Copper (BC) | 95% | TC - Tinned Copper | 0.03 in | 22 | 7x30 | |
| Pair(s) | Tape | Bi-Laminate (Alum+Poly) | Beldfoil® (Z-Fold®) | 100% |
| Material | Nominal Diameter |
|---|---|
| PVC - Polyvinyl Chloride | 0.47 in |
| Nominal Conductor DCR Conductor Resistance | Nominal Inner Shield DCR | Nominal Outer Shield DCR |
|---|---|---|
| 15 Ohm/1000ft | 2.6 Ohm/1000ft | 11 Ohm/1000ft |
| Element | Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Shield |
|---|---|---|
| Coax(es) | 51 pF/ft | 17.3 pF/ft |
| Pair(s) | 95.5 pF/ft |
| Nominal Inductance |
|---|
| 0.09 µH/ft |
| Element | Nominal Characteristic Impedance |
|---|---|
| Coax(es) | 75 Ohm |
| Element | Frequency [MHz] | Nom. Insertion Loss |
|---|---|---|
| Coax(es) | 1 MHz | 0.3 dB/100ft |
| 5 MHz | 0.7 dB/100ft | |
| 10 MHz | 1 dB/100ft | |
| 50 MHz | 2.1 dB/100ft | |
| 100 MHz | 3 dB/100ft |
| Element | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| Coax(es) | 1.3 ns/ft | 78% |
| UL Voltage Rating |
|---|
| 30 V RMS |
| Electrical Characteristics Notes: | Coax Nominal Voltage Breakdown Jacket (Shield to Ground) = 22kV RMS |
| Non-UL Temp Rating: | 60°C |
| Operating Temperature Range: | -40°C To +60°C |
| Bulk Cable Weight: | 58 lbs/1000ft |
| Max. Pull Tension: | 68 lbs |
| Min. Bend Radius/Minor Axis: | 2.5 in |
| NEC/(UL) Compliance: | CL2 |
| UL AWM Style Compliance: | AWM 20006 |
| CPR Euroclass: | Eca |
| RG Type: | 59 |
| Environmental Space: | Indoor (Not Riser or Plenum) |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/11/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive 2015/863/EU (RoHS 2 amendment): | Yes |
| EU Directive Compliance: | Yes |
| EU CE Mark: | No |
| MII Order #39 (China RoHS): | Yes |
| Suitability - Indoor: | Yes |
| UL Flammability: | UL1685 UL Loading |
| UL voltage rating: | 30 V RMS |
| Plenum (Y/N): | No |
| Item # | Color | Put-Up Type | Length | UPC |
|---|---|---|---|---|
| 9265 010500 | Black | Reel | 500 ft | 612825226017 |
| 9265 0101000 | Black | Reel | 1,000 ft | 612825226000 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Notes: | Simaese Type Construction. |
| Update and Revision: | Revision Number: 0.356 Revision Date: 04-29-2024 |
