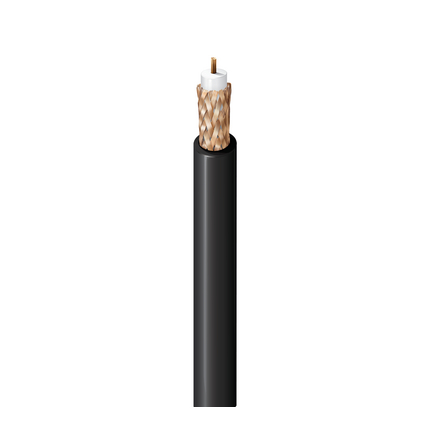

9259 - Analog Video, RG59, 22 AWG Stranded BC, BC Braid, PVC Jacket, CM


Analog Video, RG-59/U, 22 AWG stranded (7x30) .030" bare copper conductor, foam polyethylene insulation, bare copper braid shield (95% coverage), CM PVC jacket.

Product Overview

Environmental Space: Indoor (Not Riser or Plenum)

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Coax
227x30BC - Bare Copper0.03 in1
Conductor Count: 1
Insulation
MaterialNominal Diameter
FPE - Foamed Polyethylene0.146 in
Outer Shield Material
TypeMaterialCoverage [%]
BraidBC - Bare Copper95 %
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.241 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCROuter Conductor DCR
15 Ohm/1000ft2.6 Ohm/1000ft2.6 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to Shield
17.3 pF/ft
Inductance
Nominal Inductance
0.09 µH/ft
Impedance
Nominal Characteristic Impedance
75 Ohm
High Frequency (Nominal/Typical)
Frequency [MHz]Nom. Insertion Loss
1 MHz0.3 dB/100ft
5 MHz0.65 dB/100ft
10 MHz0.9 dB/100ft
50 MHz2.1 dB/100ft
100 MHz3 dB/100ft
200 MHz4.5 dB/100ft
400 MHz6.6 dB/100ft
700 MHz8.9 dB/100ft
900 MHz10.1 dB/100ft
1000 MHz10.9 dB/100ft
Delay
Nominal DelayNominal Velocity of Propagation (VP) [%]
1.3 ns/ft78 %
High Freq
Frequency [MHz]Max. Insertion Loss (Attenuation)
400 MHz7.4 dB/100ft
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Non-UL Temp Rating: 80°C
Operating Temp Range: -40°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 33 lbs/1000ft
Max Recommended Pulling Tension: 65 lbs
Min Bend Radius/Minor Axis: 2.5 in

Standards

NEC/(UL) Specification: CM
CEC/C(UL) Specification: CM
UL AWM Style: UL Style 1354
CPR Euroclass: Eca
RG Type: 59/U Type

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1685 UL Loading
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No
Plenum Number: 89259 or 82259

Part Number

Variants
Item #ColorUPCLengthFootnote
9259 010100Black612825358893100 ft
9259 0101000Black6128253529691,000 ftC
9259 010500Black612825354987500 ftC
9259 0105000Black6128253589095,000 ftC
9259 010U1000Black6128253587701,000 ft
9259 010U500Black612825357841500 ft
9259 0101200Black6128253529211,200 ft
9259 0101500Black6128253587871,500 ft
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.257 Revision Date: 08-22-2019
Date: 2004-01-01
