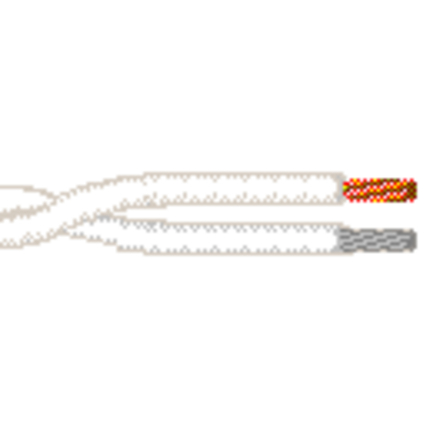

9151 - Speaker Cable, 2 Conductor 22 AWG BC, Unshielded, CM


2 Conductor 22 AWG stranded (7x30) ETP high-conductivity copper conductors, PVC insulation, cabled: (1) tinned, (1) bare.

Product Overview

Environmental Space: Indoor (Not Riser or Plenum)
Suitable Applications: Speaker Cable

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
227x30Tinned High-Conductivity ETP Copper1
227x30Bare High-Conductivity ETP Copper1
Conductor Count: 2
Insulation
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.053 in
Outer Shield Material
Material
Unshielded
Outer Jacket Material
MaterialNominal Diameter
Unjacketed0.105 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
15 Ohm/1000ft
Inductance
Nominal Inductance
0.19 µH/ft
Current
Max. Recommended Current [A]
2.9 Amps per conductor @ 25°C
Voltage
UL Voltage Rating
90 V RMS

Temperature Range

Non-UL Temp Rating: 90°C
Operating Temp Range: -35°C To +105°C

Mechanical Characteristics

Bulk Cable Weight: 6 lbs/1000ft
Max Recommended Pulling Tension: 17 lbs
Min Bend Radius/Minor Axis: 1.25 in

Standards

UL AWM Style: 10226

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-10-01
CA Prop 65 (CJ for Wire & Cable): Yes
MII Order #39 (China RoHS): Yes

Suitability

Suitability - Indoor: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: VW-1
UL voltage rating: 90 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorUPCLength
9151 009U1000White6128252248221,000 ft

History

Update and Revision: Revision Number: 0.249 Revision Date: 08-22-2019
Date: 2005-10-01
