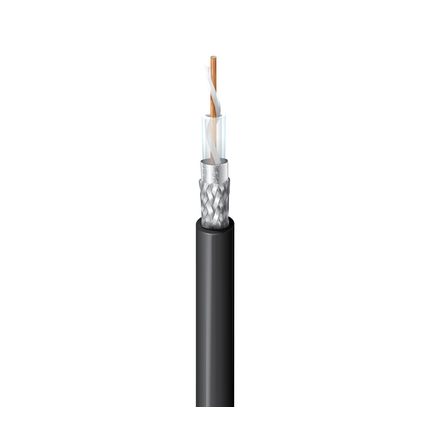

89913 - 50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid BC, Foil + 90% TC Braid, PVDF Jkt, CMP




50 Ohm Wireless Transmission Coax, RG-8, 10 AWG Solid Bare Copper Conductor , FEP Insulation, Foil + 90% Tinned Copper Braid Shield, PVDF Jacket, CMP

Product Overview

Suitable Applications: Point-to-point and point-to-multipoint wireless antenna communication; Wireless microphones, Two-Way Radios, Amateur (Ham) Radio, Low Power FM, GPS, RFID (Radio Frequency Identification)

Construction Details

RG Type: 8
Conductor
SizeStrandingNom. DiameterMaterial
10 AWGSolid0.108 inBC - Bare Copper
Insulation
MaterialNom. Insulation DiameterColor CodeNotes
FEP - Fluorinated Ethylene Propylene0.292 in (7.42 mm)ClearSolid FEP monofilament spiral around conductor. Solid FEP tube over monofilament
Outer Shield
LayerOuter Shield TypeMaterialMaterial Trade NameCoverage
1TapeTri-Laminate (Alum+Poly+Alum)Duobond® II100%
2BraidTinned Copper (TC)90%
Outer Jacket
MaterialNom. Diameter
PVDF - Polyvinylidene Fluoride0.360 in (9.14 mm)
Overall Cable Diameter (Nominal): 0.360 in (9.14 mm)

Electrical Characteristics

Attenuation
FrequencyNom. Attenuation
1 MHz0.1 dB/100ft
10 MHz0.4 dB/100ft
50 MHz1.0 dB/100ft
100 MHz1.6 dB/100ft
200 MHz2.3 dB/100ft
400 MHz3.4 dB/100ft
700 MHz5.0 dB/100ft
900 MHz6.0 dB/100ft
1000 MHz6.9 dB/100ft
Electricals
Nom. Conductor DCRNom. Outer Shield DCRNom. Capacitance Cond-to-ShieldNom. Characteristic ImpedanceNom. Velocity of Prop.
0.9 Ohm/1000ft3.3 Ohm/1000ft (11 Ohm/km)25 pF/ft (82 pF/m)50 Ohm83%
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL TemperatureOperating
150°C-15°C to +150°C
Bend Radius
Installation Min.
3.6 in (91 mm)
Max. Pull Tension: 174 lbs (78.9 kg)
Bulk Cable Weight: 119 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor - Plenum, Indoor, Outdoor, UV Resistance, Aerial - When supported by messenger wire
Sustainability: CA Prop 65
Flammability / Reaction to Fire: NFPA 262
CPR Compliance: CPR Euroclass: Eca
NEC / UL Compliance: CMP
CEC / C(UL) Compliance: CMP
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance: UKCA Mark
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 9913

Product Notes

Notes: Recommend use of 7733A for applications above 1 GHz.

History

Update and Revision: Revision Number: 0.495 Revision Date: 02-03-2025

Part Numbers

Variants
Item #ColorPutup TypeLengthUPCFootnote
89913 010500BlackReel500 ft612825223870C
89913 0101000BlackReel1,000 ft612825221463C
