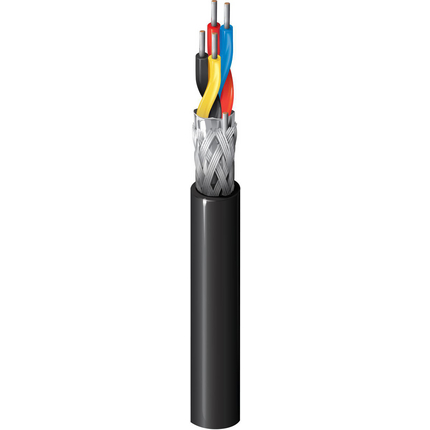

(10)Computer POS Cable, 22 AWG solid tinned copper conductors, solid FEP insulation, twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (55% coverage) + polyester tape, 22 AWG solid tinned copper drain wire, FEP jacket, plenum rated
| Suitable Applications: | point of sale; rs-485 applications; extreme high/low temperature environments; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | Solid | TC - Tinned Copper | 2 |
| Conductor Count: | 4 |
| Material | Nominal Wall Thickness |
|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.016 in |
| Number | Color |
|---|---|
| 1 | Red & Blue |
| 2 | Black & Yellow |
| Number |
|---|
| 24 |
| 24 |
| 24 |
| 24 |
| Type | Layer | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | 1 | Alum / Poly | Beldfoil® | 100 % | TC - Tinned Copper | 22 | Solid |
| Braid | 2 | TC - Tinned Copper | 55 % |
| Outer Shield Table Note: | Polyester Tape |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene | 0.272 in | 0.016 in |
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 16.5 Ohm/1000ft | 4.9 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 15.5 pF/ft | 27 pF/ft |
| Nominal Characteristic Impedance |
|---|
| 100 Ohm |
| Frequency [MHz] | Nom. Insertion Loss |
|---|---|
| 0.3 MHz | 0.4 dB/100ft |
| 0.6 MHz | 0.53 dB/100ft |
| 1 MHz | 0.65 dB/100ft |
| 1.5 MHz | 0.78 dB/100ft |
| Max. Delay Skew | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 69.5 ns/100m | 1.46 ns/ft | 69.5 % |
| Frequency [MHz] |
|---|
| 0.3 MHz |
| 0.6 MHz |
| 1 MHz |
| 1.5 MHz |
| Max. Recommended Current [A] |
|---|
| Per conductor @ 25°C: 2.2 A |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Operating Temp Range: | -70°C To +200°C |
| Bulk Cable Weight: | 38 lbs/1000ft |
| Max Recommended Pulling Tension: | 65 lbs |
| Min Bend Radius/Minor Axis: | 2.75 in |
| NEC Articles: | 800 |
| NEC/(UL) Specification: | CMP |
| CEC/C(UL) Specification: | CMP |
| CPR Euroclass: | Eca |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (ROHS II): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| EU RoHS Compliance Date (yyyy-mm-dd): | 2005-04-01 |
| MII Order #39 (China RoHS): | Yes |
| UL Flammability: | NFPA 262 Plenum Flame Test (UL910) |
| CSA Flammability: | FT6 |
| ISO/IEC Flammability: | IEC 60332-1-2 |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | Yes |
| Non-Plenum Number: | 9855 |
| Item # | Color | UPC |
|---|---|---|
| 89855 0101000 | Black | 612825221357 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Update and Revision: | Revision Number: 0.252 Revision Date: 04-28-2020 |
