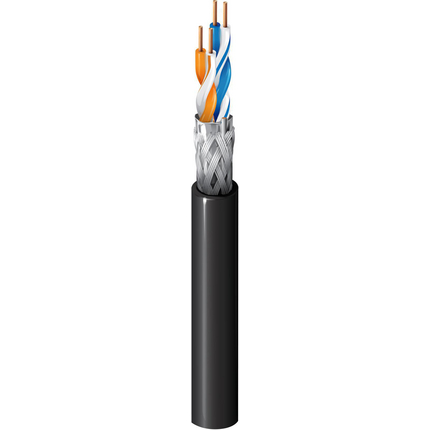

(4)Computer POS Cable, 22 AWG solid bare copper conductors, solid FEP insulation, twisted pairs, overall Beldfoil® (100% coverage) + tinned copper braid shield (55% coverage), 22 AWG solid tinned copper drain wire, FEP jacket, plenum rated
| Suitable Applications: | point of sale; rs-485 applications; extreme high/low temperature environments; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | Solid | TC - Tinned Copper | 2 |
| Conductor Count: | 4 |
| Material | Material Trade Name |
|---|---|
| FEP - Fluorinated Ethylene Propylene | Teflon® |
| Number | Color |
|---|---|
| 1 | Blue & White with Blue Stripe |
| 2 | Orange & White with Orange Stripe |
| Type | Layer | Material | Material Trade Name | Coverage [%] | Drainwire Material | Drainwire AWG | Drainwire Construction n x D |
|---|---|---|---|---|---|---|---|
| Tape | 1 | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | TC - Tinned Copper | 22 | Solid |
| Braid | 2 | Tinned Copper (TC) | 55% |
| Table Notes: | Polyester Tape |
| Material | Material Trade Name | Nominal Diameter |
|---|---|---|
| FEP - Fluorinated Ethylene Propylene | Teflon® | 0.262 in |
| Nominal Conductor DCR | Nominal Outer Shield DCR |
|---|---|
| 16.5 Ohm/1000ft | 4.2 Ohm/1000ft |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 15.5 pF/ft | 27 pF/ft |
| Nominal Inductance |
|---|
| 0.15 µH/ft |
| Nominal Characteristic Impedance |
|---|
| 100 Ohm |
| Max. Delay Skew | Nominal Delay | Nominal Velocity of Propagation (VP) [%] |
|---|---|---|
| 69.5 ns/100m | 1.46 ns/ft | 70% |
| Frequency [MHz] |
|---|
| 0.3 MHz |
| 0.6 MHz |
| 1 MHz |
| 1.5 MHz |
| UL Voltage Rating |
|---|
| 300 V RMS |
| Operating Temperature Range: | -70°C To +200°C |
| Bulk Cable Weight: | 41.1 lbs/1000ft |
| Max. Pull Tension: | 65 lbs |
| Min. Bend Radius/Minor Axis: | 5.5 in |
| NEC/(UL) Compliance: | CMP |
| CEC/C(UL) Compliance: | CMP |
| EU Directive 2000/53/EC (ELV): | Yes |
| EU Directive 2003/96/EC (BFR): | Yes |
| EU Directive 2011/65/EU (RoHS 2): | Yes |
| EU Directive 2012/19/EU (WEEE): | Yes |
| EU Directive Compliance: | EU Directive 2003/11/EC (BFR) |
| EU CE Mark: | Yes |
| MII Order #39 (China RoHS): | Yes |
| UL Flammability: | NFPA 262 Plenum Flame Test (UL910) |
| UL voltage rating: | 300 V RMS |
| Plenum (Y/N): | Yes |
| Non-Plenum Number: | 9696 |
| Item # | Color | UPC |
|---|---|---|
| 89696 0101000 | Black | 612825221081 |
| Footnote: | C - CRATE REEL PUT-UP. |
| Notes: | Teflon® is a registered trademark of E. I. duPont de Nemours and Co. used under license by Belden, Inc. |
| Update and Revision: | Revision Number: 0.339 Revision Date: 02-03-2025 |
