89503 - RS232, #24-3pr, FEP, O/A Foil, FEP Jkt, CMP

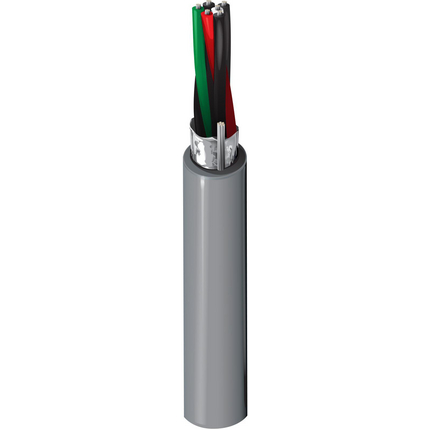

Computer EIA RS-232 Cable, 24 AWG stranded (7x32) tinned copper conductors, FEP insulation, twisted pair, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, FEP jacket, plenum rated

Product Overview

Suitable Applications: extreme high/low temperature environments; rs-232 applications; computer communications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Pairs
247x32TC - Tinned Copper3
Conductor Count: 6
Insulation
MaterialNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.006 in
Color Chart
NumberColor
1Black & White
2Black & Red
3Black & Green
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeBi-Laminate (Alum+Poly)Beldfoil®100%TC - Tinned Copper247x32
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
FEP - Fluorinated Ethylene Propylene0.175 in0.014 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
24.1 Ohm/1000ft15.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
21 pF/ft40 pF/ft
Inductance
Nominal Inductance
0.17 µH/ft
Current
Max. Recommended Current [A]
1.5 Amps per Conductor at 25ºC
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

Operating Temp Range: -70°C To +200°C

Mechanical Characteristics

Bulk Cable Weight: 21 lbs/1000ft
Max. Pull Tension: 39 lbs
Min Bend Radius/Minor Axis: 1.75 in

Standards

NEC/(UL) Compliance: CMP
CEC/C(UL) Compliance: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT1
UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V RMS

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Non-Plenum Number: 9503
Variants
Item #ColorUPC
89503 002100Red612825220992
89503 0021000Red612825221005
89503 002500Red612825221012
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.235 Revision Date: 09-30-2020
Date: 2005-04-01
