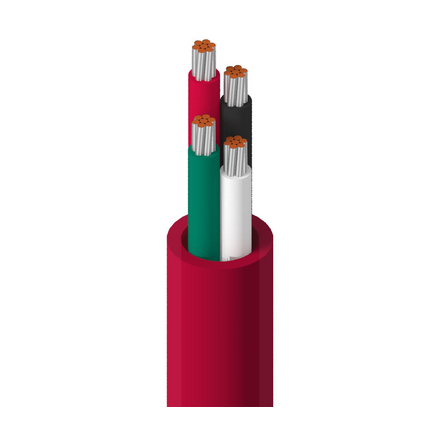

88444 - Electronic, 4 C #22 Str TC, FEP Ins, FEP Jkt, CMP


High Temperature Electronic, 4 Conductor 22AWG (7x30) Tinned Copper, FEP Insulation, FEP Outer Jacket, CMP

Product Overview

Suitable Applications: extreme high/low temperature environments; chemical resistant; outdoor and burial applications; low voltage analog signals (4-20ma, 0-10v, ...); low voltage control (24v, …); line level audio; voice communications; panel wiring

Construction Details

Conductor
ElementNumber of ElementAWGStrandingMaterial
Conductor(s)4227x30TC - Tinned Copper
Insulation
ElementMaterialThickness [in.]Color Code
Conductor(s)FEP - Fluorinated Ethylene Propylene0.007Black, White, Red, Green
Outer Jacket Material
MaterialThicknessNom. Diameter
FEP - Fluorinated Ethylene Propylene0.010 in0.121 in
Cable Diameter (Nominal): 0.121 in

Electrical Characteristics

Electricals
ElementNom. Conductor DCRNom. Capacitance Cond-to-CondMax. Current
Conductor(s)15 Ohm/1000ft18 pF/ft3.3 Amps per Conductor at 25ºC (10°C Temperature Rise)
Voltage
UL Voltage Rating
300 V (CMP)

Mechanical Characteristics

Temperature
UL RatingOperating
150°C-70°C to +200°C
Bend Radius
Stationary Min.Installation Min.
1.25 in1.2 in
Max. Pull Tension: 36 lbs
Bulk Cable Weight: 15 lbs/1000ft

Standards and Compliance

Environmental Suitability: Indoor, Outdoor, Oil Resistance, Burial
Sustainability: CA Prop 65
Flammability / Fire Resistance: NFPA 262, FT6, IEC 60332-1-2
NEC / UL Compliance: Article 800, CMP
CEC / C(UL) Compliance: CMP
CPR Euroclass: Eca
European Directive Compliance: EU CE Mark, EU Directive 2015/863/EU, EU Directive 2011/65/EU (ROHS II), EU Directive 2012/19/EU (WEEE)
APAC Compliance: China RoHS II (GB/T 26572-2011)
Non-Plenum Number: 8444

History

Update and Revision: Revision Number: 0.338 Revision Date: 09-30-2020
