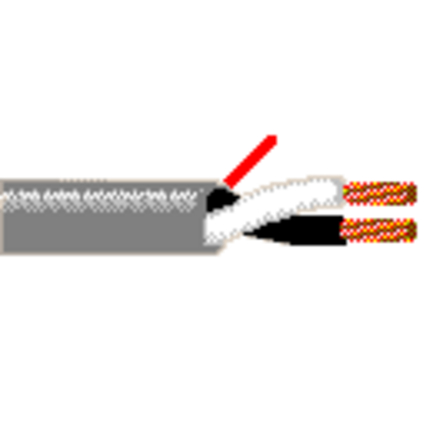

8814 - Speaker Cable, 2 Conductor 14 AWG BC, Unshielded, CM


2 Conductor 14 AWG, stranded (19x26H) bare copper conductors, PVC/Nylon insulation, PVC jacket.

Product Overview

Suitable Applications: AUDITORIUM , STADIUM , RACE TRACK , CHURCH , TEMPLE , SYNAGOGUE , PLACE OF ASSEMBLY , CASINO , SOUND

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
1419x26HBC - Bare Copper2
Conductor Count: 2
Insulation
LayerMaterial
1PVC - Polyvinyl Chloride
2Nylon
Color Chart
Color
Black & White
Outer Shield Material
Material
No Shield
Outer Jacket Material
MaterialNominal Diameter
PVC - Polyvinyl Chloride0.328 in

Construction and Dimensions

Cabling
Filler
Ripcord

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
2.6 Ohm/1000ft
Voltage
UL Voltage Rating
600 V

Temperature Range

Operating Temp Range: -30°C To +75°C Wet; -30°C To +90°C Dry
Wet Temp Range: -30°C To +75 °C
Dry Temp Range: -30°C To +90°C Dry

Mechanical Characteristics

Bulk Cable Weight: 55 lbs/1000ft
Max. Pull Tension: 95 lbs
Min Bend Radius/Minor Axis: 3.5 in

Standards

NEC/(UL) Compliance: NPLF, TC, THHN/THWN Singles

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive Compliance: EU Directive 2002/96/EC (WEEE)
EU RoHS Compliance Date (yyyy-mm-dd): 2012-03-15

Suitability

Suitability - Burial: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1581 Vertical Tray
CSA Flammability: FT4
IEEE Flammability: 1202
UL voltage rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
8814 0101000BlackReel1,000 ft612825216872
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.251 Revision Date: 06-24-2020
Date: 2012-03-15
