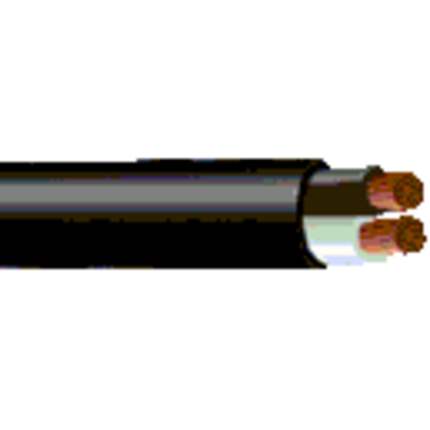

8810H - Speaker Cable, #10-2c, BC, Unshielded, CM


10 AWG, stranded (19x23) bare copper conductors, PVC/Nylon insulation.

Product Overview

Suitable Applications: AUDITORIUM , STADIUM , RACE TRACK , CHURCH , TEMPLE , SYNAGOGUE , PLACE OF ASSEMBLY , CASINO , SOUND

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Conductors
10105x30BC - Bare Copper0.118 in2
Conductor Count: 2
Insulation
LayerMaterialNominal DiameterNominal Wall Thickness
1PVC - Polyvinyl Chloride0.0162 in0.022 in
2Nylon0.172 in0.005 in
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
TPE - Thermoplastic Elastomer0.442 in0.047 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor Resistance
1 Ohm/1000ft1 Ohm/1000ft
Voltage
UL Voltage Rating
600 V

Temperature Range

Operating Temp Range: -30°C To +75°C Wet; -30°C To +90°C Dry
Wet Temp Range: -30°C To +75°C
Dry Temp Range: -30°C To +90°C Dry

Mechanical Characteristics

Bulk Cable Weight: 123 lbs/1000ft
Max Recommended Pulling Tension: 273 lbs
Min Bend Radius/Minor Axis: 4.5 in

Standards

NEC/(UL) Specification: NPLF, TC, THHN/THWN Singles

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2002/96/EC (WEEE)
EU CE Mark: No

Suitability

Suitability - Burial: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1581 Vertical Tray
CSA Flammability: FT4
IEEE Flammability: 1202
UL voltage rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
8810H B591000Black, MatteReel1,000 ft612825216636
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.200 Revision Date: 04-28-2020
