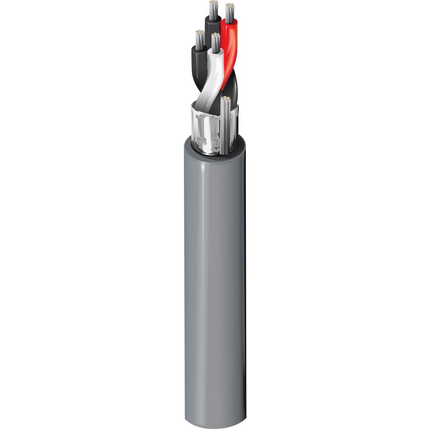

88102 - RS232/422 Low Cap, #24-2pr, FFEP, O/A Foil, PVDF Jkt, CMP, 100Ω


Computer EIA RS-232/422 Cable, 2-Pair, 24 AWG stranded (7x32) tinned copper conductors, foam FEP insulation, overall Beldfoil® shield (100% coverage), 24 AWG stranded tinned copper drain wire, fluorocopolymer jacket, plenum rated

Product Overview

Suitable Applications: extreme high temperature environments; rs-232 extended distance applications; rs-422 applications; computer communication; low voltage analog signals (4-20ma, 0-10v, ...); low voltage digital control (24v, …); line level audio; panel wiring

Physical Characteristics (Overall)

Conductor
ElementAWGStrandingMaterialNo. of Pairs
Pair(s)247x32TC - Tinned Copper2
Conductor Count: 4
Insulation
ElementMaterialNominal Wall Thickness
Pair(s)FEP - Fluorinated Ethylene Propylene (Foam)0.015 in
Color Chart
NumberColor
1White/Blue Stripe & Blue/White Stripe
2White/Orange Stripe & Orange/White Stripe
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWGDrainwire Construction n x D
TapeAlum / PolyBeldfoil®100 %TC - Tinned Copper247x32
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVDF - Polyvinylidene Fluoride0.203 in0.014 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Outer Shield DCR
24 Ohm/1000ft15.5 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Other Conductor to Shield
13 pF/ft23.3 pF/ft
Inductance
Nominal Inductance
0.21 µH/ft
Impedance
Nominal Characteristic Impedance
100 Ohm
High Frequency (Nominal/Typical)
Nom. Insertion Loss
22.5 dB/100m
Delay
Max. Delay SkewNominal DelayNominal Velocity of Propagation (VP) [%]
78 ns/100m1.3 ns/ft78 %
Current
Max. Recommended Current [A]
1.76 Amps per conductor @ 25°C ambient
Voltage
UL DescriptionUL Voltage Rating
CMP300 V

Temperature Range

UL Temp Rating: 150°C
Operating Temp Range: -20°C to +150°C

Mechanical Characteristics

Bulk Cable Weight: 20 lbs/1000ft
Max Recommended Pulling Tension: 28 lbs
Min Bend Radius/Minor Axis: 2.25 in

Standards

NEC Articles: 800
NEC/(UL) Specification: CMP
CEC/C(UL) Specification: CMP
CPR Euroclass: Eca

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2005-04-01
MII Order #39 (China RoHS): Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: NFPA 262 Plenum Flame Test (UL910)
CSA Flammability: FT6
ISO/IEC Flammability: IEC 60332-1-2
UL voltage rating: 300 V

Plenum/Non-Plenum

Plenum (Y/N): Yes

Part Number

Variants
Item #ColorUPC
88102 0081000Gray612825216643
88102 008500Gray612825216650
Footnote: C - CRATE REEL PUT-UP.

History

Update and Revision: Revision Number: 0.300 Revision Date: 05-27-2020
Date: 2005-04-01
