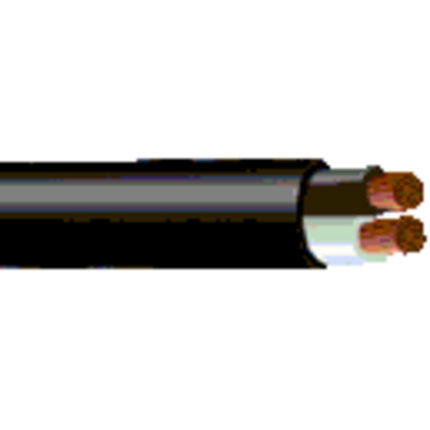

8808H - Speaker Cable, #8-2c, BC, Unshielded, CM


8 AWG (19x21) bare copper conductors, PVC/nylon insulated, twisted pair, unshielded, PVC jacket, rip cord

Product Overview

Suitable Applications: Auditorium, Stadium, Race Track, Church, Temple, Synagogue, Place Of Assembly, Casino, Sound

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNominal DiameterNo. of Conductors
87x19x29BC - Bare Copper0.166 in2
Conductor Count: 2
Insulation
LayerMaterialNominal DiameterNominal Wall Thickness
1PVC - Polyvinyl Chloride0.033 in
2Nylon0.244 in0.006 in
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
TPE - Thermoplastic Elastomer0.618 in0.063 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCRNominal Conductor DCR Conductor Resistance
0.66 Ohm/1000ft0.66 Ohm/1000ft
Voltage
UL Voltage Rating
600 V

Temperature Range

Wet Temp Range: -30°C To +75°C
Dry Temp Range: -30°C To +90°C Dry

Mechanical Characteristics

Bulk Cable Weight: 228 lbs/1000ft
Max Recommended Pulling Tension: 425 lbs
Min Bend Radius/Minor Axis: 6.25 in

Standards

NEC/(UL) Specification: NPLF, TC, THHN/THWN Singles

Applicable Environmental and Other Programs

Environmental Space: Indoor/Outdoor
EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/11/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2002/96/EC (WEEE)
EU CE Mark: No

Suitability

Suitability - Burial: Yes
Suitability - Indoor: Yes
Suitability - Outdoor: Yes
Suitability - Sunlight Resistance: Yes

Flammability, LS0H, Toxicity Testing

UL Flammability: UL1581 Vertical Tray
CSA Flammability: FT4
IEEE Flammability: 1202
UL voltage rating: 600 V RMS

Plenum/Non-Plenum

Plenum (Y/N): No

Part Number

Variants
Item #ColorPutup TypeLengthUPC
8808H B591000Black, MatteReel1,000 ft612825216599

History

Update and Revision: Revision Number: 0.136 Revision Date: 04-28-2020
