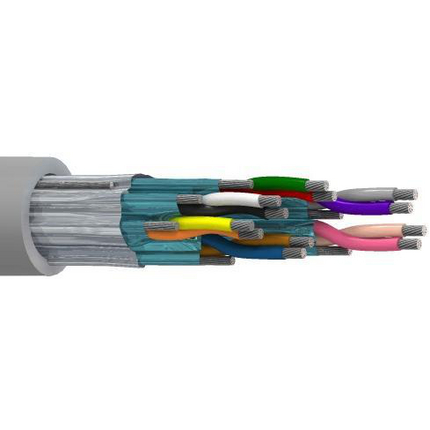

8778MN - SpaceMaker™, 6 Pr #22 Str TC, PO Ins, IS/OS, PVC Jkt, AWM 2937


SpaceMaker™, 6 Pair 22AWG (19x34) Tinned Copper, PO Insulation, Individual & Overall Beldfoil® Shield, PVC Outer Jacket, AWM 2937

Physical Characteristics (Overall)

Conductor
AWGStrandingMaterialNo. of Conductors
2219x34TC - Tinned Copper12
Total Number of Pairs: 6
Insulation
MaterialNominal Wall Thickness
PP - Polypropylene0.010 in
Color Chart
NumberColor
1Black & White
2Red & Dark Green
3Brown & Dark Blue
4Orange & Yellow
5Purple & Gray
6Pink & Tan
Inner Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeAluminum Foil-Polyester TapeBeldfoil®100 %TC - Tinned Copper24
Outer Shield Material
TypeMaterialMaterial Trade NameCoverage [%]Drainwire MaterialDrainwire AWG
TapeAluminum/PolyesterBeldfoil®100 %TC - Tinned Copper22
Outer Jacket Material
MaterialNominal DiameterNominal Wall Thickness
PVC - Polyvinyl Chloride0.317 in0.016 in

Electrical Characteristics

Conductor DCR
Nominal Conductor DCR
14.9 Ohm/1000ft
Capacitance
Nom. Capacitance Conductor to ConductorNom. Capacitance Conductor to Shield
33 pF/ft62.7 pF/ft
Inductance
Nominal Inductance
0.18 µH/ft
Voltage
UL Voltage Rating
300 V RMS

Temperature Range

UL Temp Rating: 80°C
Operating Temp Range: -20°C To +80°C

Mechanical Characteristics

Bulk Cable Weight: 61 lbs/1000ft
Max Recommended Pulling Tension: 157 lbs
Min Bend Radius During Installation: 1.270 in
Min Bend Radius (Continuous Flexing): 3.170 in

Standards

UL AWM Style: AWM 2937 (300 V 80°C), NFPA 79

Applicable Environmental and Other Programs

EU Directive 2000/53/EC (ELV): Yes
EU Directive 2003/96/EC (BFR): Yes
EU Directive 2011/65/EU (ROHS II): Yes
EU Directive 2012/19/EU (WEEE): Yes
EU Directive 2015/863/EU: Yes
EU Directive Compliance: EU Directive 2003/11/EC (BFR)
EU CE Mark: Yes
EU RoHS Compliance Date (yyyy-mm-dd): 2004-01-01
CA Prop 65 (CJ for Wire & Cable): Yes

Flammability, LS0H, Toxicity Testing

C(UL) Flammability: FT2
UL voltage rating: 300 V RMS

Part Number

Variants
Item #ColorUPC
8778MN 006100Blue, Light612825385936
8778MN 0061000Blue, Light612825385943
8778MN 008100Gray612825385950
8778MN 0081000Gray612825382683
8778MN 004100Yellow612825385912
8778MN 0041000Yellow612825385929

History

Update and Revision: Revision Number: 0.201 Revision Date: 08-28-2019
Date: 2004-01-01
