(109)Audio, Control & Instrument, 6 Pair AWG 22 Tinned Copper - Stranded, Polyolefin (PO, PE, PP) insulation, Individually Foiled + No Overall shielding, LSZH / FRNC jacket , 300V
| Suitable Applications: | Instrumentation and computer cable; For data transmission applications |
| AWG | Stranding | Material | No. of Pairs |
|---|---|---|---|
| 22 | 7x30 | TC - Tinned Copper | 6 |
| Conductor Count: | 12 |
| Material | Nominal Diameter | Diameter +/- Tolerance |
|---|---|---|
| PP - Polypropylene | 1.27 mm | 0.05 mm |
| Number | Color |
|---|---|
| Pair 1 | Black & Red |
| Pair 2 | Black & White |
| Pair 3 | Black & Green |
| Pair 4 | Black & Blue |
| Pair 5 | Black & Yellow |
| Pair 6 | Black & Brown |
| Table Notes: | Shielded pairs |
| Number | Color |
|---|---|
| Pair 1 | Red |
| Pair 2 | Green |
| Pair 3 | Blue |
| Pair 4 | Blue |
| Pair 5 | Blue |
| Pair 6 | Blue |
| Type | Layer | Material | Material Trade Name | Thickness of Foil | Drainwire Material | Drainwire AWG |
|---|---|---|---|---|---|---|
| Tape | 1 | Bi-Laminate (Alum+Poly) | Beldfoil® (Z-Fold®) | 9 / 12 µm | TC - Tinned Copper | AWG22/7 |
| Tape | 2 | Polyester | 12 µm |
| Material | Color | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | Chrome (RAL 7037) | 9.5 mm | 0.89 mm |
| Material |
|---|
| Bi-Laminate (Alum+Poly) |
| Material | Nominal Diameter | Nominal Wall Thickness |
|---|---|---|
| LSZH - Low Smoke Zero Halogen (Flame Retardant) | 13.9 mm | 1.35 mm |

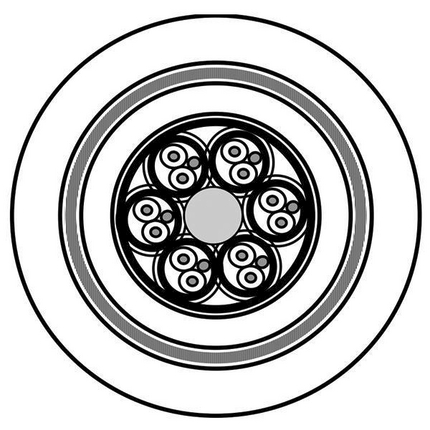

| Description | Filler |
|---|---|
| 1 center filler and 6 pairs twisted to cable core covered with a polypropylene foil | Foamed flame retardant Polypropylene (2.50 mm) |
| Type of Armor | Material | Thickness of Armoring Wires | Coverage Percentage |
|---|---|---|---|
| Steel Wire Armoring | Galvanized steel wire | 1.25 mm | Min. 95% |
| Nominal Conductor DCR | Nominal Inner Shield DCR |
|---|---|
| 49.2 Ohm/km | 34.8 Ohm/km |
| Nom. Capacitance Conductor to Conductor | Nom. Capacitance Conductor to Other Conductor to Shield |
|---|---|
| 98.4 pF/m | 180.4 pF/m |
| Nominal Pair Inductance |
|---|
| 0.59 µH/m |
| Nominal Characteristic Impedance |
|---|
| 50 Ohm |
| Element | Max. Recommended Current [A] |
|---|---|
| Conductor(s) | 2 A |
| Voltage Rating [V] |
|---|
| 300 V |
| Installation Temperature Range: | -15°C To +80°C |
| Storage Temperature Range: | -45°C To +80°C |
| Operating Temp Range (Flexible Install): | -15°C To +80°C |
| Operating Temp Range (Fixed Install): | -45°C To +80°C |
| Oil Resistance: | IEC 60811-404 |
| Min. Bend Radius During Installation: | 208.5 mm |
| CENELEC Compliance: | EN 50290-2-20 |
| Environmental Space: | Indoor, Indoor/Outdoor, Outdoor, Indoor/Outdoor - Euroclass Eca |
| Suitability - Sunlight Resistance: | Yes |
| IEC Flammability: | IEC 60332-3-24 |
| IEC 60754-1 - Halogen Amount: | Zero |
| IEC 60754-2 - Halogen Acid Gas Amount - Max. Conductivity: | 2.5 µS/mm |
| IEC 60754-2 - Halogen Acid Gas Amount - Min. pH: | 4.3 |
| IEC 61034-2 - Smoke Density Min. Transmittance: | 60% |
| Item # | Color | Put-Up Type | Length | EAN |
|---|---|---|---|---|
| 8778LS.00500 | Black | Reel | 500 m | 8719605019684 |
| 8778LS.001000 | Black | Reel | 1,000 m | 8719605019677 |
| Update and Revision: | Revision Number: 0.234 Revision Date: 02-20-2024 |
